7093-0278
ActiveMcGill Microwave Systems

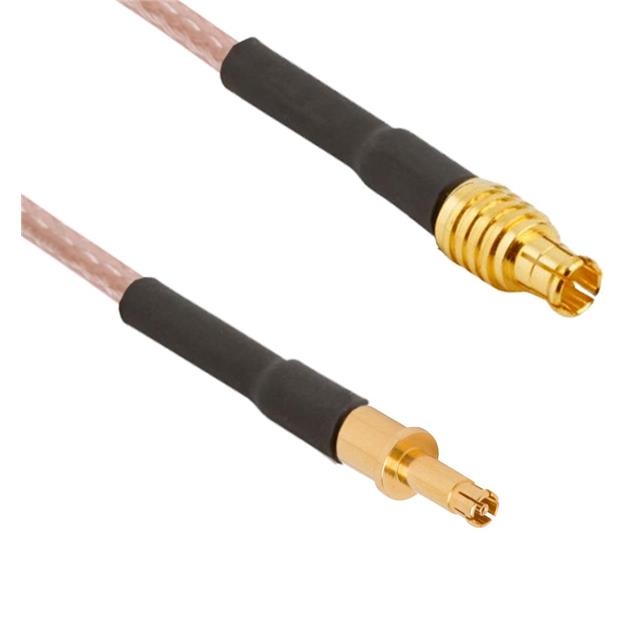

RF / COAXIAL CABLE ASSEMBLY, SMPM PLUG TO MCX PLUG, RG179, 75 OHM, 12 ", 304.8 MM
7093-0278
ActiveMcGill Microwave Systems
RF / COAXIAL CABLE ASSEMBLY, SMPM PLUG TO MCX PLUG, RG179, 75 OHM, 12 ", 304.8 MM
Description
General part information
7093-0278
Cable Assembly Coaxial SMPM to MCX RG-179 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7093-0278 |
|---|---|
| 1st Connector | SMPM Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | RG, 179 |
| Color | Copper |
| Frequency - Max | 3 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 75 Ohms |
| Style | SMPM, MCX |
