536154-5
ActiveTE Connectivity AMP Connectors

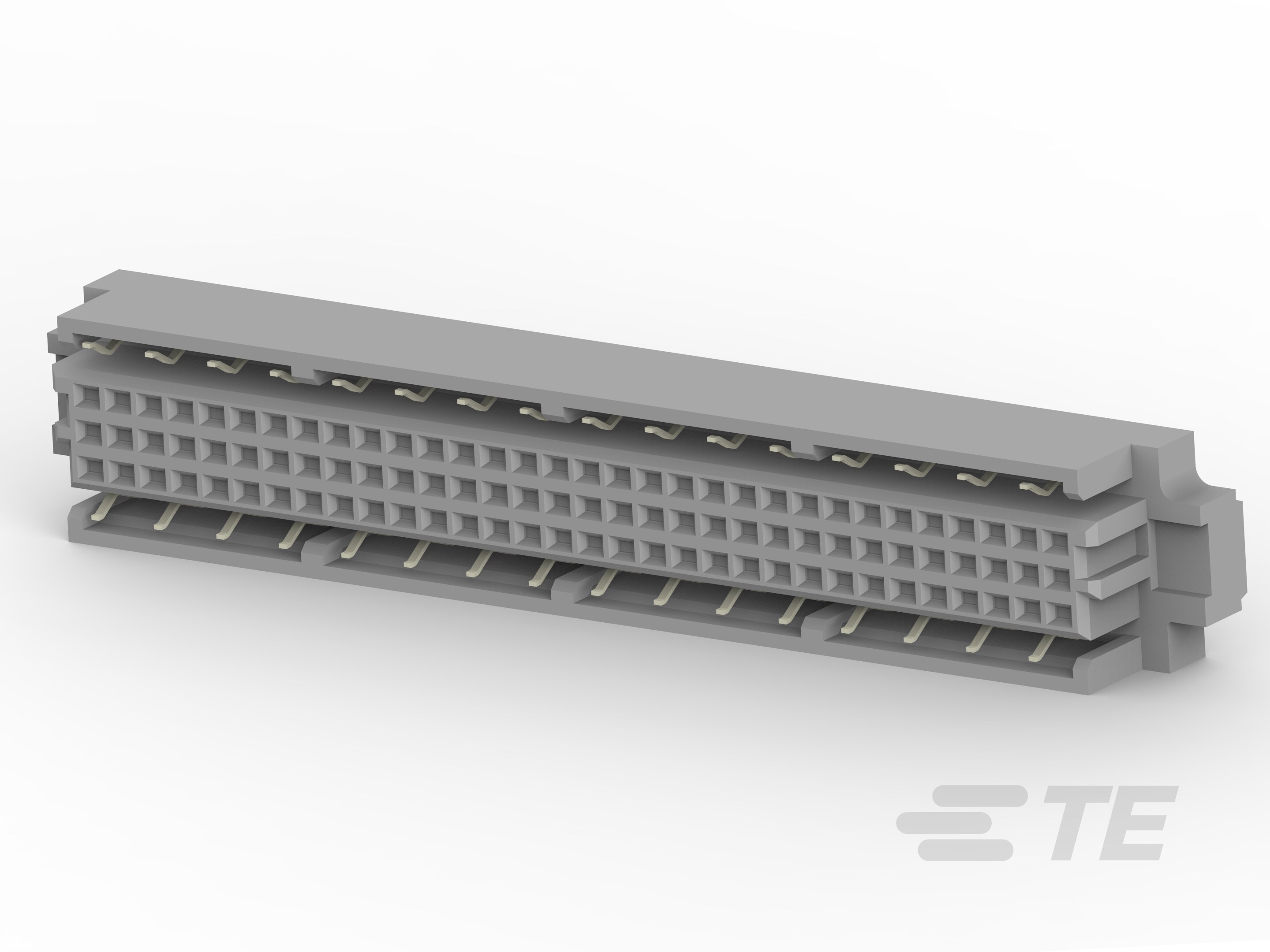

096 ENHNCD EURO RECPT ST ASSY ROHS COMPLIANT: NO
536154-5
ActiveTE Connectivity AMP Connectors
096 ENHNCD EURO RECPT ST ASSY ROHS COMPLIANT: NO
Description
General part information
536154-5
Receptacle, Board-to-Board, 96 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Vertical, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 536154-5 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Features | Board Lock |
| Level, Class | 2 |
| Mounting Type | Through Hole |
| Number of Positions | 128 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Pitch | 0.1 in |
| Position Types | Ground |
| Style | C |
| Termination | Solder |
