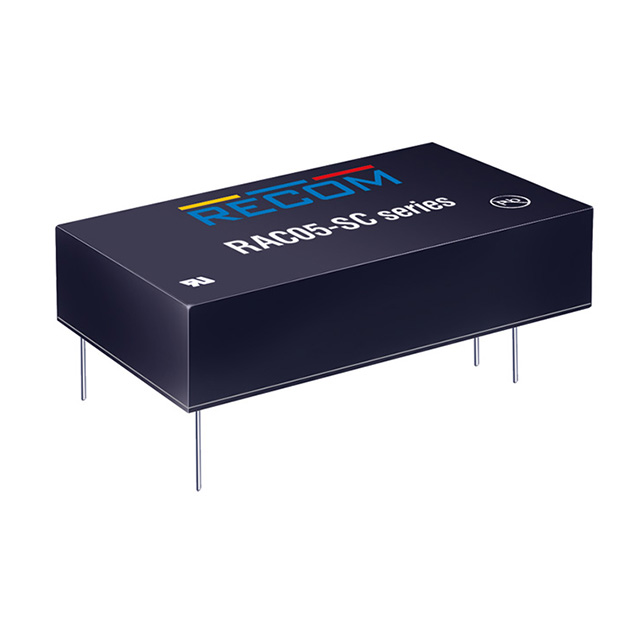

RAC05-15SC/W
ObsoleteRecom Power
AC/DC CONVERTER 15V 5W
RAC05-15SC/W
ObsoleteRecom Power
AC/DC CONVERTER 15V 5W
Description
General part information
RAC05-15SC/W
Enclosed AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC05-15SC/W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 340 mA |
| Efficiency | 76 % |
| Features | Universal Input, DC Input Capable |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.62 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
