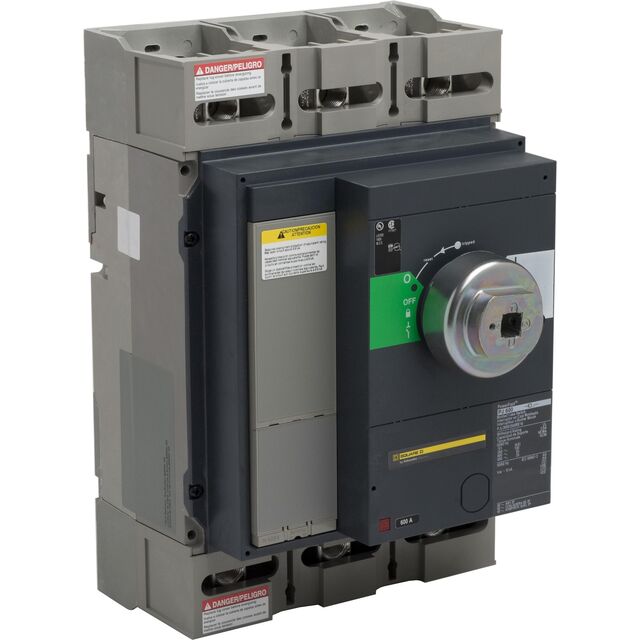

PJL36000S80RE10
ActiveSCHNEIDER ELECTRIC
AUTOMATIC MOLDED CASE SWITCH 600
PJL36000S80RE10
ActiveSCHNEIDER ELECTRIC
AUTOMATIC MOLDED CASE SWITCH 600
Description
General part information
PJL36000S80RE10
Circuit Breaker Magnetic 800A 600 V AC DC Rotary Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PJL36000S80RE10 |
|---|---|
| Actuator Type | Rotary |
| Approval Agency | CSA, UL, IEC |
| Breaker Type | Magnetic |
| Current Rating | 800 A |
| Illumination | None |
| Mounting Type | Chassis Mount |
| Number of Poles | 3 |
| Voltage Rating - AC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
