2890946
ActivePhoenix Contact

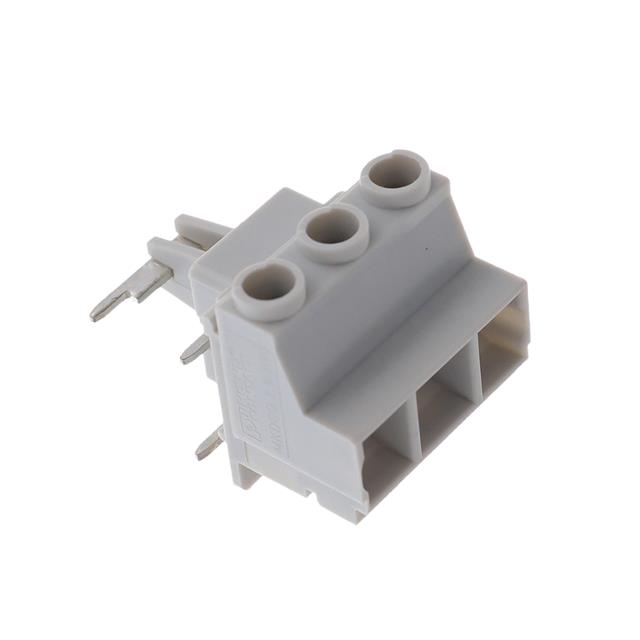

TERM BLK 3POS SIDE ENT 7.5MM PCB
2890946
ActivePhoenix Contact
TERM BLK 3POS SIDE ENT 7.5MM PCB
Description
General part information
2890946
3 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 2890946 |
|---|---|
| Color | Gray |
| Current | 20 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.295 in |
| Positions Per Level | 3 |
| Screw Thread | M3 |
| Torque - Screw (Maximum) | 0.6 Nm |
| Torque - Screw (Minimum) | 0.5 Nm |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
