Description
General part information

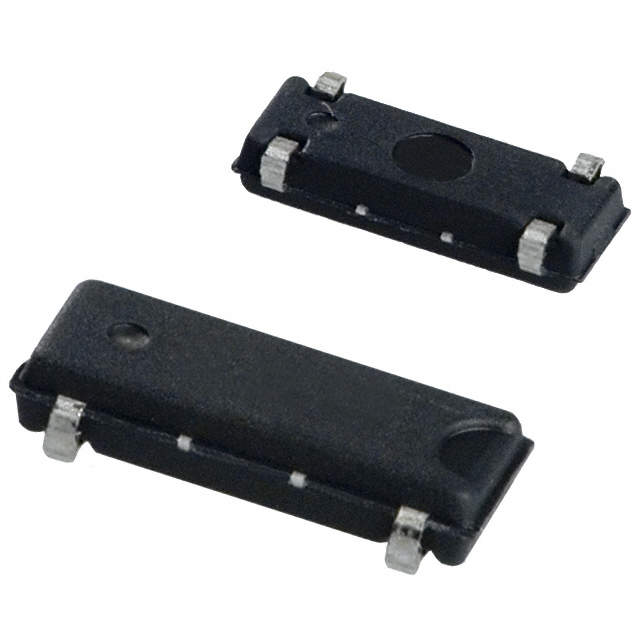

MC-156 32.7680KA-A0: PURE SN
32.768 kHz ±20ppm Crystal 12.5pF 65 kOhms 4-SOJ, 5.08mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | MC-156 32.7680KA-A0: PURE SN |
|---|---|
| ESR (Equivalent Series Resistance) | 65 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.059 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5.08mm pitch, 4-SOJ |
| Package Name | 4-SOJ |
| Package Pitch | 0.2 in |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.098 in |
| Type | kHz Crystal (Tuning Fork) |
