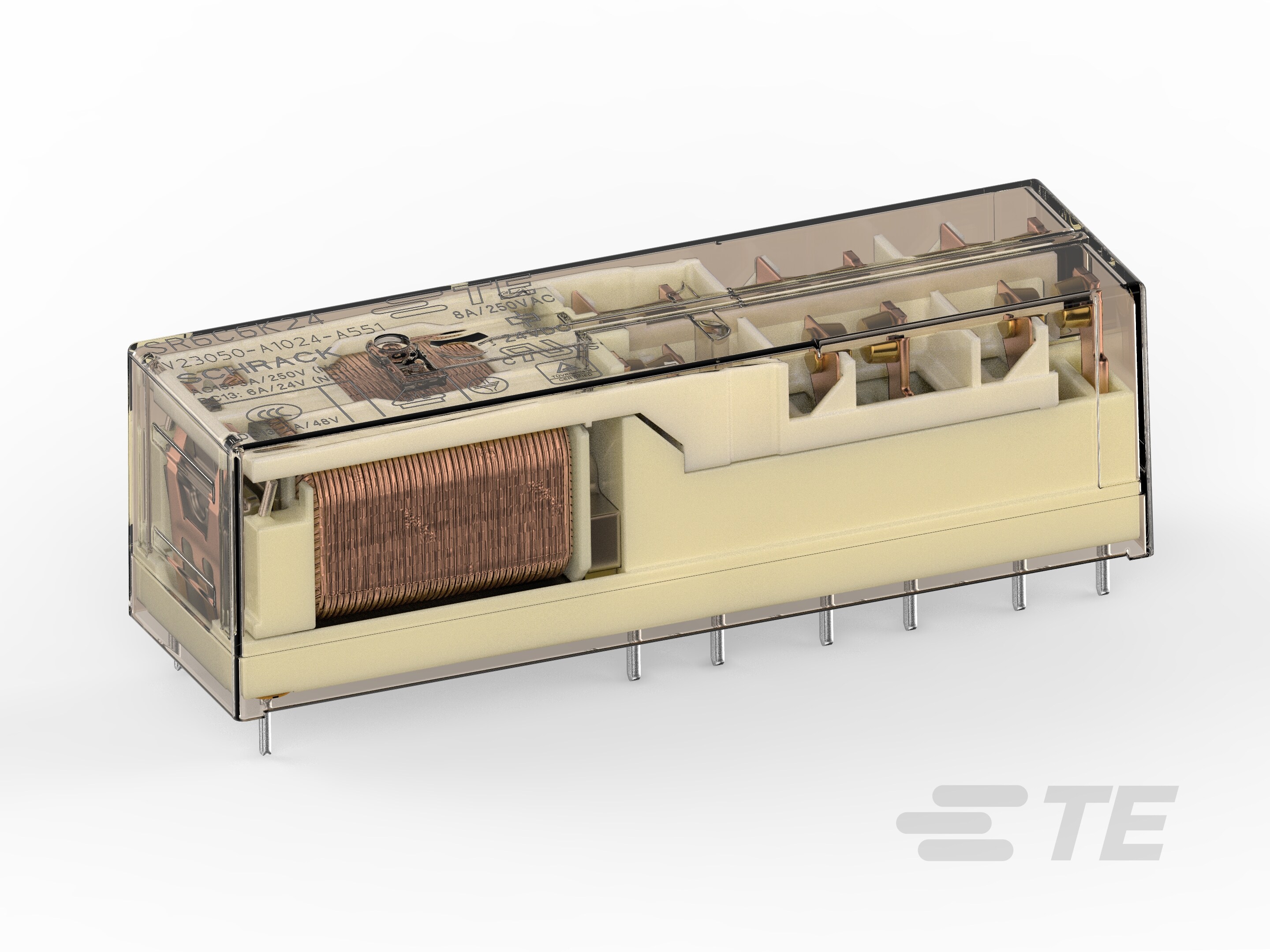

Specification	9-1415537-4

Approval Agency	CCC, cURus, TUV, VDE
Coil Current	33.3 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	B, 1, A, PST-5NO/1NC, 5, Form
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A
Load - Max Switching (Apparent Power)	3200 VA
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 V
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Pin Count	6
Relay Type	General Purpose
Seal Rating	Fully, Sealed
Switching Voltage AC (Max)	400 VAC

SCHRACK SR6 Series

Part	Coil Current	Coil Power	Coil Resistance	Mounting Type	Coil Voltage	Must Operate Voltage	Termination Style	Contact Rating (Current)	Switching Voltage AC (Max)	Must Release Voltage	Pin Count	Contact Form	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Coil Insulation	Relay Type	Approval Agency	Load - Max Switching (Apparent Power)	Coil Type	Must Operate Voltage Type	Must Release Voltage Type	Coil Voltage (Type)
TE Connectivity AMP Connectors V23050A1060A542	0.02 A	1.2 W	3 kOhms	Through Hole	60 VDC	45 VAC	PC Pin	8 A	400 VAC	6 VDC	6	2 4 A B Form PST-4NO/2NC	Silver Tin Oxide (AgSnO)	70 °C	-25 °C
TE Connectivity AMP Connectors V23050A1024A533
TE Connectivity AMP Connectors V23050A1040A542
TE Connectivity AMP Connectors 2-1558738-4	58.5 mA		205 Ohms	Through Hole	12 VAC	8.4 VAC	PC Pin	8 A	400 VAC	1.2 V	6	1 5 A B Form PST-5NO/1NC	Silver Tin Oxide (AgSnO)	85 °C	-40 °C	Class F	General Purpose	cURus TUV VDE	3200 VA	Non Latching
TE Connectivity AMP Connectors V23050A1021A542				Through Hole	21 VDC	15.8 V	PC Pin	8 A	400 VAC	2.1 VDC	6	2 4 A B Form PST-4NO/2NC	Silver Tin Oxide (AgSnO)	70 °C	-25 °C
TE Connectivity AMP Connectors V23050A1060A542
TE Connectivity AMP Connectors V23050A1012A551
TE Connectivity AMP Connectors 8-1415537-0				Through Hole	24 VDC	18 VDC	PC Pin	8 A	400 VAC	2.4 V	6	2 4 A B Form PST-4NO/2NC	Silver Tin Oxide (AgSnO)	70 °C	-25 °C
TE Connectivity AMP Connectors 6-1415046-1		1.2 W		DIN Rail	115 VAC	103.5 VAC	Spring Terminal	8 A	250 VAC	11.5 VDC	6	2 4 A B Form PST-4NO/2NC	Silver Tin Oxide (AgSnO)	50 °C	-25 °C						AC DC	AC DC	AC DC
TE Connectivity AMP Connectors V23050A1110A551
