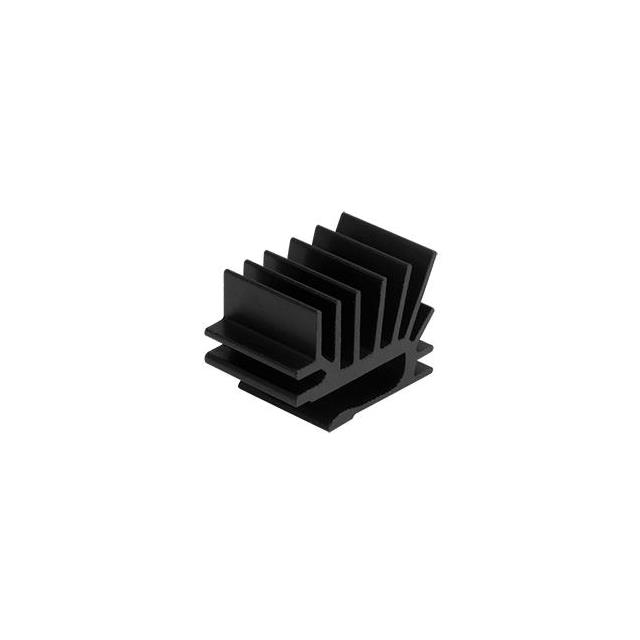

HSE05-171933
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, EXTRUSION, TO-218/TO-
HSE05-171933
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, EXTRUSION, TO-218/TO-
Description
General part information
HSE05-171933
Heat Sink TO-218, TO-220 Aluminum Alloy 3.98W @ 75°C Board Level
Technical Specifications
Parameters and characteristics for this part
| Specification | HSE05-171933 |
|---|---|
| Attachment Method | PC Pin |
| Fin Height | 1.28 in |
| Length | 0.764 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220, TO-218 |
| Power Dissipation | 3.98 W |
| Shape | Rectangular, Angled Fins |
| Thermal Resistance | 18.83 °C/W, 6.9 °C/W |
| Type | Board Level |
| Width | 0.669 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
