66602-9
ActiveTE Connectivity AMP Connectors
CIRCULAR CONNECTOR CONTACT, TYPE III+ ENHANCED HIGH CURRENT, PIN, CRIMP, 14 AWG, 18 AWG
66602-9
ActiveTE Connectivity AMP Connectors
CIRCULAR CONNECTOR CONTACT, TYPE III+ ENHANCED HIGH CURRENT, PIN, CRIMP, 14 AWG, 18 AWG
Description
General part information
AMP Type III+ Series

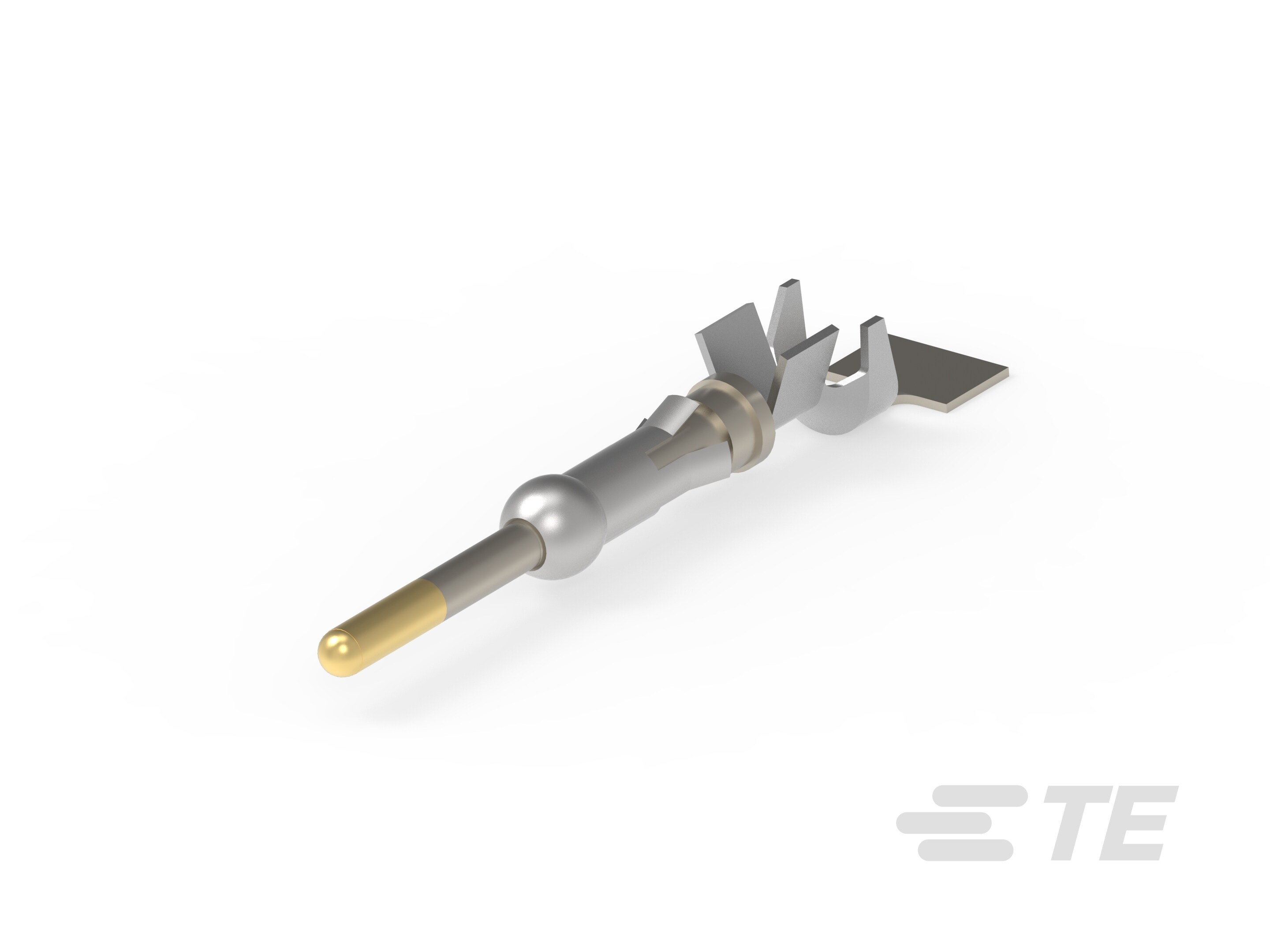

The 66602-9 is a pin Signal Contact made of copper alloy with gold plated finish. It accepts 18 to 14AWG wire size. The Type III+ series crimp contact is suitable for CPC and M series connectors.
Technical Specifications
Parameters and characteristics for this part
| Specification | 66602-9 |
|---|---|
| Contact Finish | PdNi +Gold, Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Nickel Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
