D25000CSE50/AA
ActiveMcGill Microwave Systems

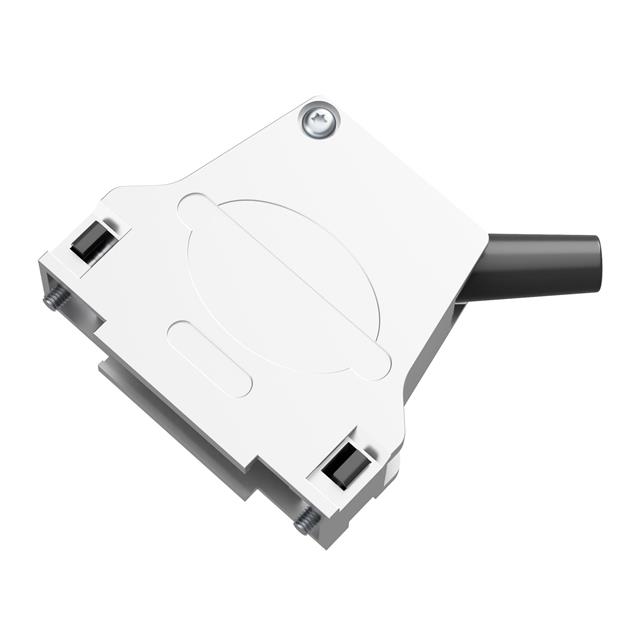

D SUB BACKSHELL, CS SERIES, DB, 45°, ZINC ALLOY BODY
D25000CSE50/AA
ActiveMcGill Microwave Systems
D SUB BACKSHELL, CS SERIES, DB, 45°, ZINC ALLOY BODY
Description
General part information
D25000CSE50/AA
25 Position Two Piece Backshell Connector Silver 45° Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | D25000CSE50/AA |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit Angle | 45 ° |
| Cable Type | Round |
| Color | Silver |
| Features | Mating Screws 4-40 |
| Hardware | Cable Clamp, Strain Relief, Assembly Hardware |
| Material | Zinc |
| Number of Positions | 25 |
| Plating | Nickel |
| Primary Material | Metal |
| Shielding | Shielded |
