62402-1
ActiveTE Connectivity AMP Connectors
106 DIA PIN RCPT 013PTPBR ROHS COMPLIANT: YES
62402-1
ActiveTE Connectivity AMP Connectors
106 DIA PIN RCPT 013PTPBR ROHS COMPLIANT: YES
Description
General part information
62402-1

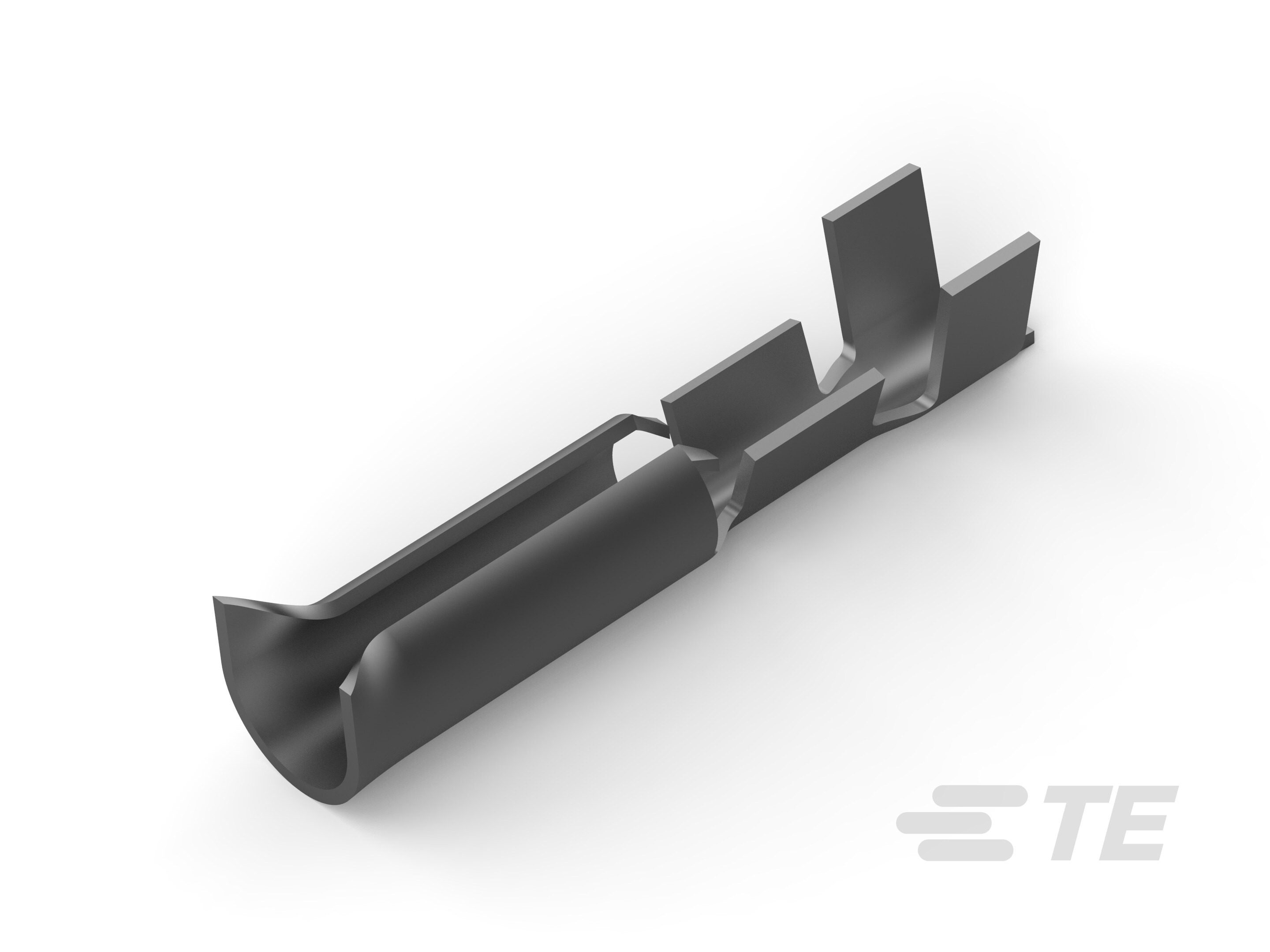

Receptacle, 2.69 mm [.106 in] Pin Diameter, 22 – 18 AWG, .3 – .8 mm² Wire, 642 – 1624 CMA, Open Barrel, Pre-Tin Plating, 17.48 mm [.688 in] Length
Technical Specifications
Parameters and characteristics for this part
| Specification | 62402-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel | 0.106 in |
| Insulation | Non-Insulated |
| Length - Barrel | 0.31 in |
| Length - Overall | 0.84 in |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
