Specification	2067639-1

Color	Gray
Contact Finish	Nickel
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Length - Overall	0.833 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.032 in
Width - Outer Edges	0.281 in
Wire Gauge	20 AWG

STRATO-THERM Series

Part	Features	Color	Insulation	Terminal Type	Number of Wire Entries	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation Diameter (Min)	Insulation Diameter (Max)	Stud/Tab Size	Contact Material	Length - Overall	Thickness	Width - Outer Edges	Contact Finish	Mounting Type	Material - Insulation
TE Connectivity AMP Connectors 323878	Brazed Seam High Temperature Serrated Mating Area	Orange	Non-Insulated	Butt Splice Individual Openings Inline	2	Crimp	16 AWG	14 AWG

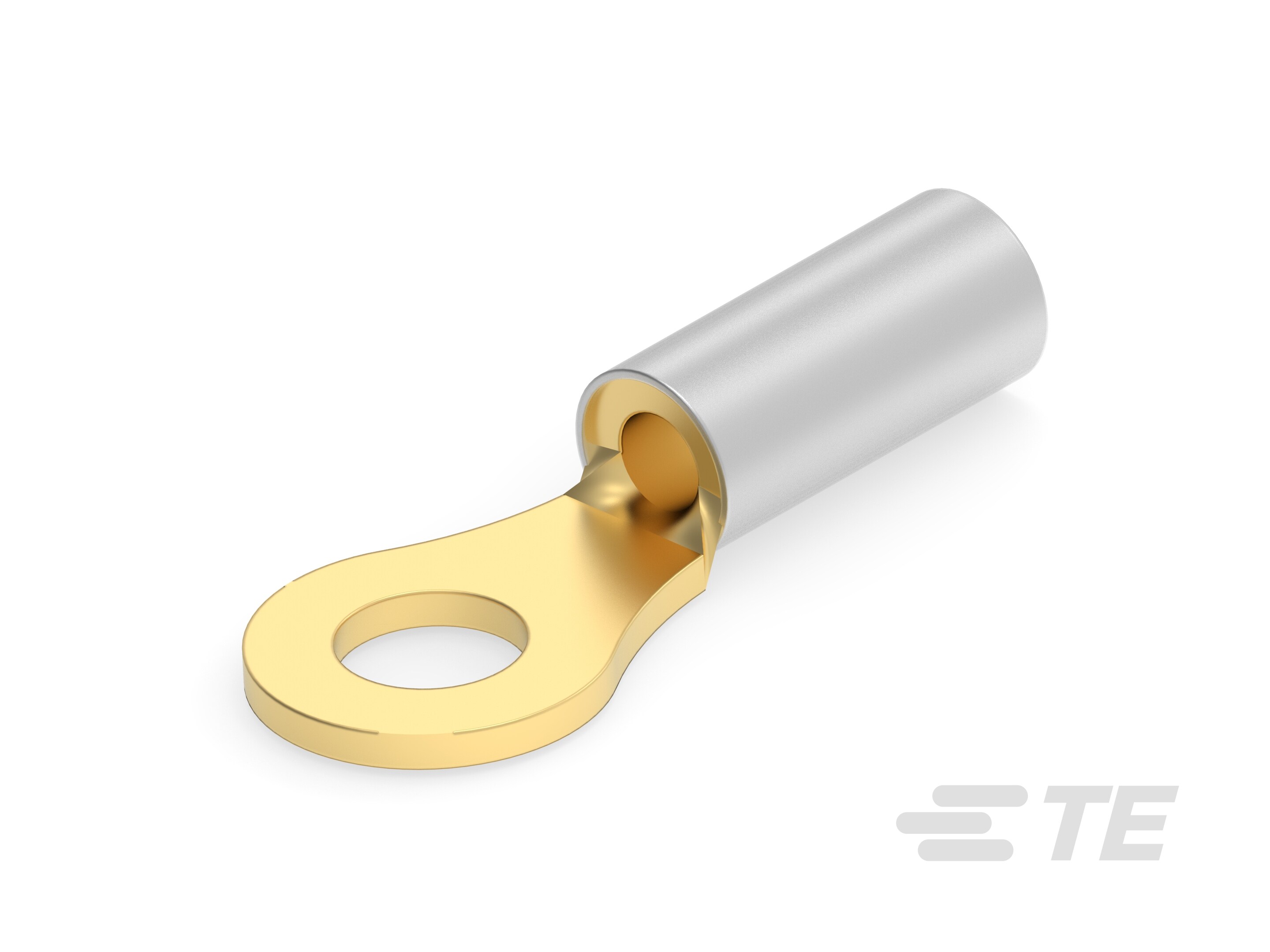

TE Connectivity AMP Connectors 323199-1	Serrated Termination		Non-Insulated	Circular		Crimp	22 AWG	16 AWG	0.105 in	0.14 in	6 Stud	Copper	0.749 in	0.031 in	0.281 in	Nickel	Free Hanging (In-Line)

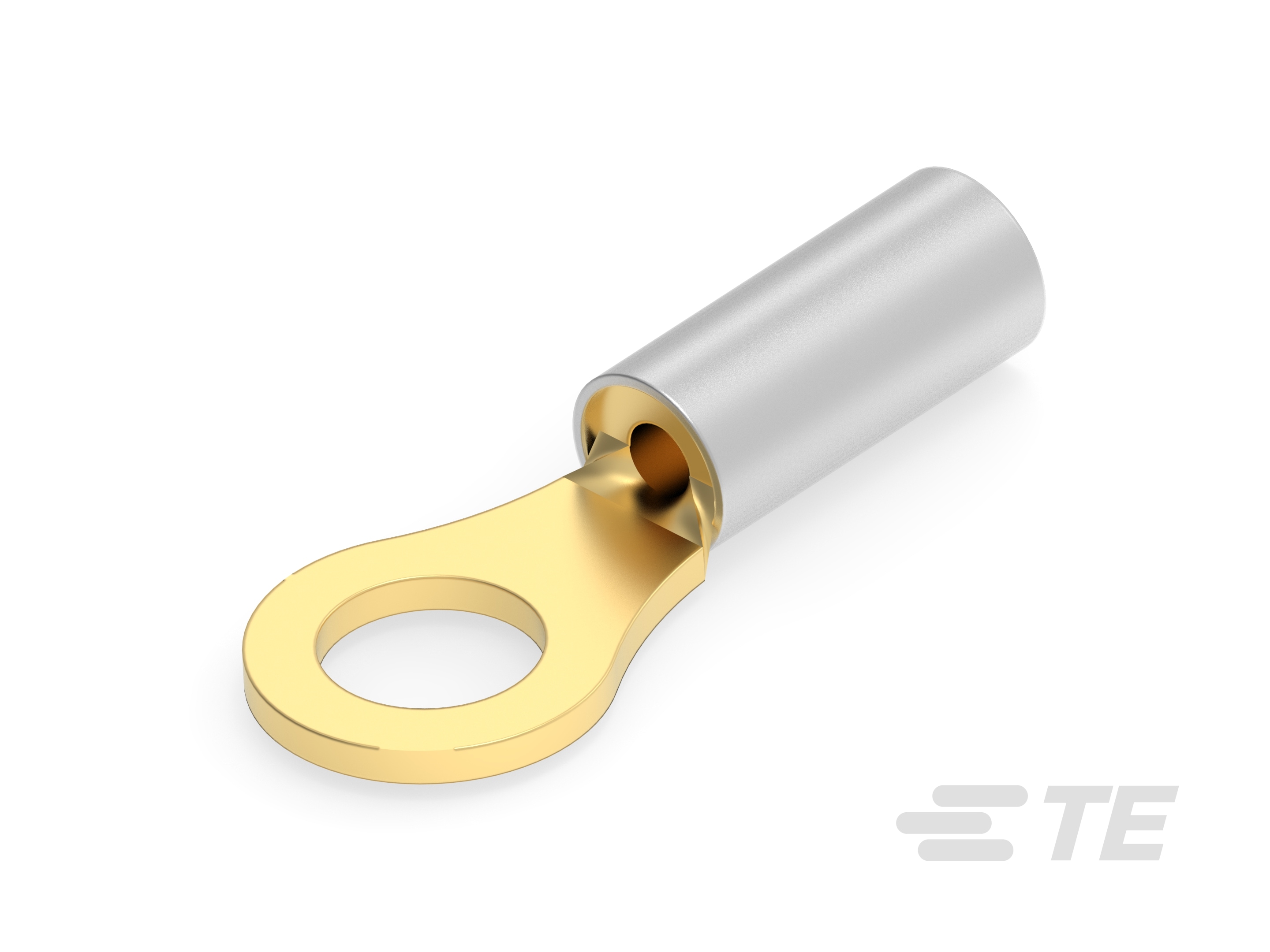

TE Connectivity AMP Connectors 323152-2	Serrated Termination		Non-Insulated	Circular		Crimp	22 AWG	16 AWG	0.051 in	0.11 in	8 Stud	Copper	0.77 in	0.031 in	0.281 in	Gold	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1577621-1	Serrated Termination	Brown	Insulated	Circular		Crimp	24 AWG	22 AWG	0.035 in	0.075 in	10 Stud	Copper	0.839 in	0.032 in	0.281 in	Nickel	Free Hanging (In-Line)	PEEK Polyetheretherketone

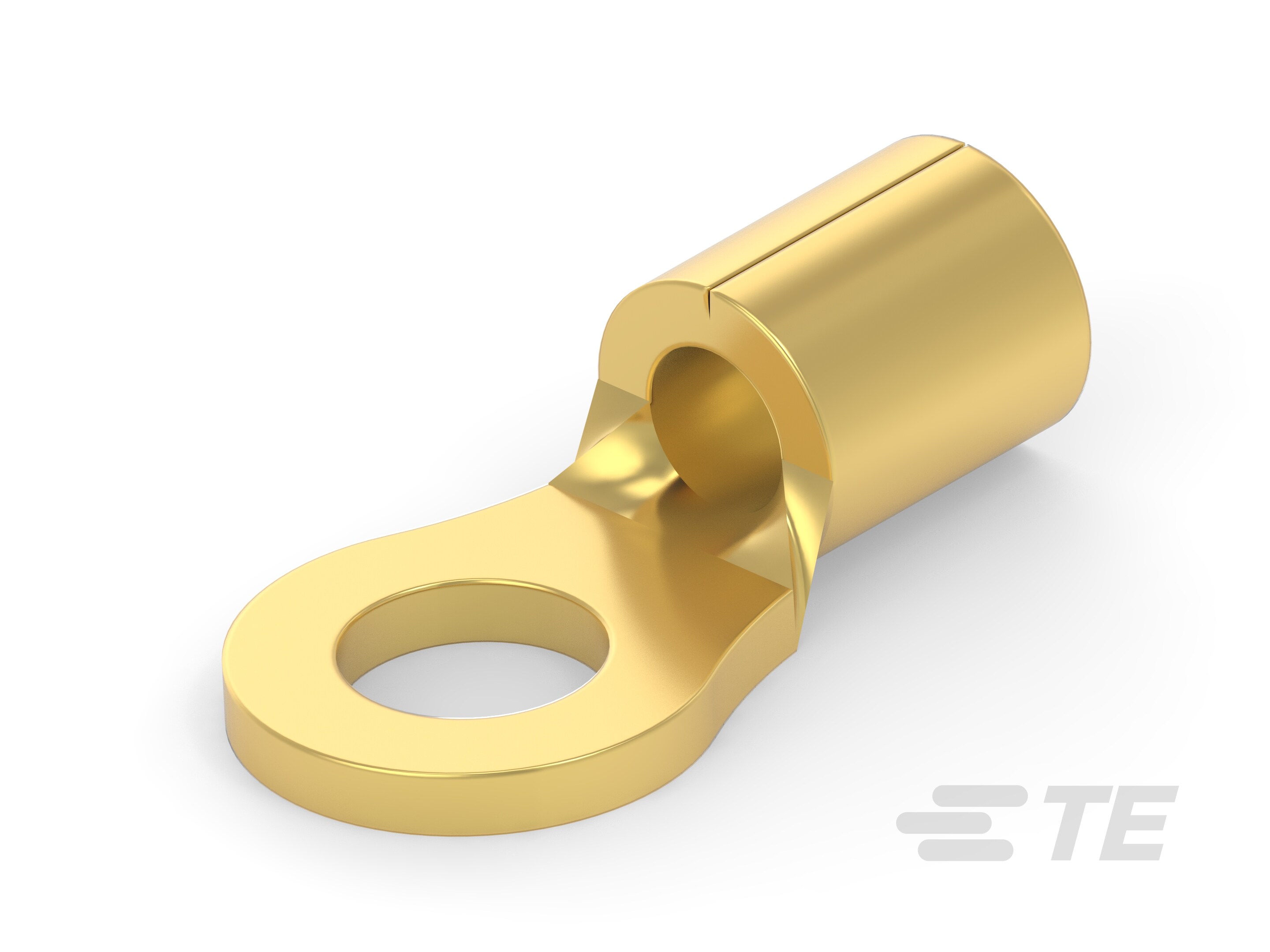

TE Connectivity AMP Connectors 34104-4	Brazed Seam Serrated Termination		Non-Insulated	Circular		Crimp	22 AWG	16 AWG			4 Stud	Copper	0.449 in	0.031 in	0.218 in	Gold	Free Hanging (In-Line)
TE Connectivity AMP Connectors 323699	High Temperature Serrated Mating Area	Orange	Non-Insulated	Butt Splice Individual Openings Inline	2	Crimp	12 AWG	10 AWG

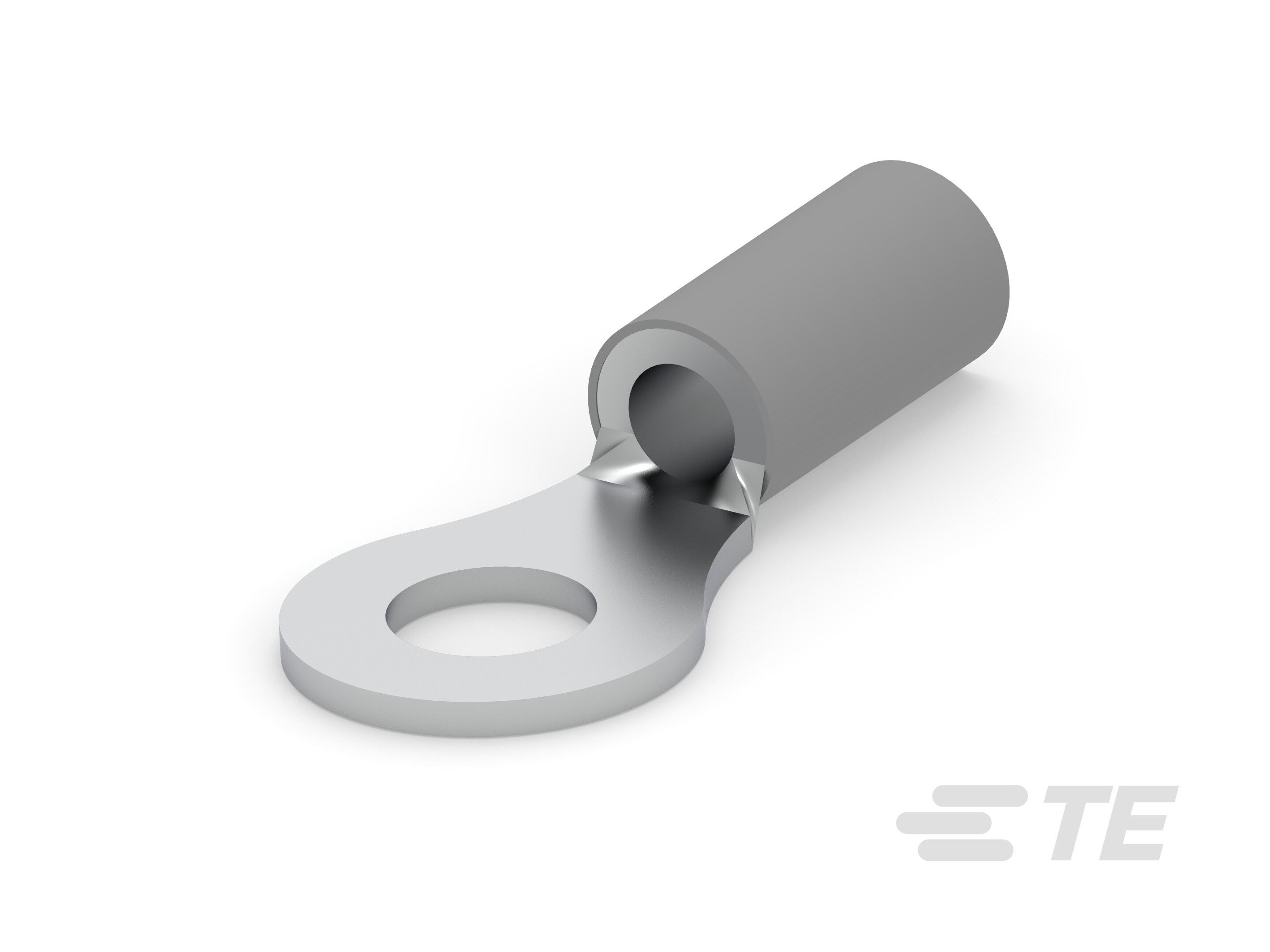

TE Connectivity AMP Connectors 1-322337-0	High Temperature Serrated Termination	Gray	Non-Insulated	Circular		Crimp	16 AWG	14 AWG	0.12 in	0.17 in	8 Stud	Chromel	0.811 in	0.031 in	0.343 in		Free Hanging (In-Line)
TE Connectivity AMP Connectors 321897	High Temperature Serrated Termination	Orange	Insulated Non-Insulated	Circular		Crimp	22 AWG	16 AWG			8 Stud	Nickel	0.796 in	0.031 in	0.312 in		Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-321894-1	High Temperature Serrated Termination	Orange	Non-Insulated	Circular		Crimp	22 AWG	16 AWG			10 Stud	Nickel	0.749 in	0.031 in	0.281 in		Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-322329-2	Brazed Seam High Temperature Serrated Termination	Orange	Non-Insulated	Circular		Crimp	16 AWG	14 AWG			6 Stud	Nickel	0.48 in	0.03 in	0.25 in		Free Hanging (In-Line)
