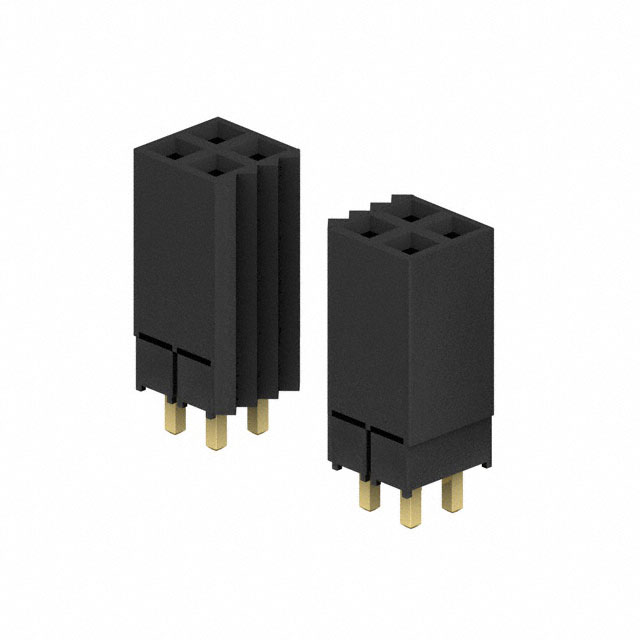

ESQ-129-12-G-D

Active

Samtec Inc.

PC / 104 CONNECTORS ELEVATED SOCKET STRIP, 0.100" PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ESQ-129-12-G-D

Active

Samtec Inc.

PC / 104 CONNECTORS ELEVATED SOCKET STRIP, 0.100" PITCH

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESQ-129-12-G-D

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	58
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	550 VAC

ESQ-129 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Rows	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Shape	Fastening Type	Number of Positions	Contact Type	Insulation Color	Connector Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Voltage Rating	Termination	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post
Samtec Inc. ESQ-129-12-G-D	2.54 mm	0.1 in	Phosphor Bronze	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	58	Forked	Black	Elevated Socket	Gold	-55 °C	125 °C	0.435 in	11.05 mm	0.51 µm	20 µin	UL94 V-0	550 VAC	Solder	Through Hole	3 µin	0.076 µm
Samtec Inc. ESQ-129-23-T-D	2.54 mm	0.1 in	Phosphor Bronze	0.19 in	4.83 mm	Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm		Square	Push-Pull	58	Forked	Black	Elevated Socket	Tin	-55 °C	105 ░C	0.535 in	13.6 mm			UL94 V-0	550 VAC	Solder	Through Hole
Samtec Inc. ESQ-129-14-T-S			Phosphor Bronze		0.48 in	Liquid Crystal Polymer (LCP)	1	5.7 A	All	0.1 in	2.54 mm		Square	Push-Pull	29	Forked	Black	Elevated Socket	Tin	-55 °C	105 ░C	0.435 in	11.05 mm			UL94 V-0	550 VAC	Solder	Through Hole			12.19 mm
Samtec Inc. ESQ-129-12-G-S			Phosphor Bronze	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	1	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	29	Forked	Black	Elevated Socket	Gold	-55 °C	125 °C	0.435 in	11.05 mm	0.51 µm	20 µin	UL94 V-0	550 VAC	Solder	Through Hole	3 µin	0.076 µm
Samtec Inc. ESQ-129-59-G-D	2.54 mm	0.1 in	Phosphor Bronze			Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	58	Forked	Black	Elevated Socket	Gold	-55 °C	125 °C	0.635 in	16.13 mm	0.51 µm	20 µin	UL94 V-0	550 VAC	Solder	Through Hole	3 µin	0.076 µm
Samtec Inc. ESQ-129-37-G-D	2.54 mm	0.1 in	Phosphor Bronze	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	58	Forked	Black	Elevated Socket	Gold	-55 °C	125 °C	0.435 in	11.05 mm	0.51 µm	20 µin	UL94 V-0	550 VAC	Solder	Through Hole	3 µin	0.076 µm
Samtec Inc. ESQ-129-48-G-T	2.54 mm	0.1 in	Phosphor Bronze	0.19 in	4.83 mm	Liquid Crystal Polymer (LCP)	3	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	87	Forked	Black	Elevated Socket	Gold	-55 °C	125 °C	0.535 in	13.6 mm	0.51 µm	20 µin	UL94 V-0	550 VAC	Solder	Through Hole	3 µin	0.076 µm
Samtec Inc. ESQ-129-39-G-D	2.54 mm	0.1 in	Phosphor Bronze		0.48 in	Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	58	Forked	Black	Elevated Socket	Gold	-55 °C	125 °C	0.435 in	11.05 mm	0.51 µm	20 µin	UL94 V-0	550 VAC	Solder	Through Hole	3 µin	0.076 µm	12.19 mm
Samtec Inc. ESQ-129-39-S-D	2.54 mm	0.1 in	Phosphor Bronze		0.48 in	Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	58	Forked	Black	Elevated Socket	Tin	-55 °C	125 °C	0.435 in	11.05 mm	0.76 Ám	30 Áin	UL94 V-0	550 VAC	Solder	Through Hole			12.19 mm
Samtec Inc. ESQ-129-44-L-D	2.54 mm	0.1 in	Phosphor Bronze	0.18 in	4.57 mm	Liquid Crystal Polymer (LCP)	2	5.7 A	All	0.1 in	2.54 mm	Gold	Square	Push-Pull	58	Forked	Black	Elevated Socket	Tin	-55 °C	125 °C	0.735 "	18.67 mm	0.25 çm	10 çin	UL94 V-0	550 VAC	Solder	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.66
		10	$ 15.14
		100	$ 11.84
		500	$ 10.10
		1000	$ 9.51
Sager	N/A	1	$ 11.63
		10	$ 10.41
		25	$ 9.63
		50	$ 8.88
		100	$ 7.87
		500	$ 6.98
		1000	$ 5.69
		2000	$ 4.27

Description

General part information

ESQ-129 Series

58 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
