AE320KJ61PN

Active

Conesys

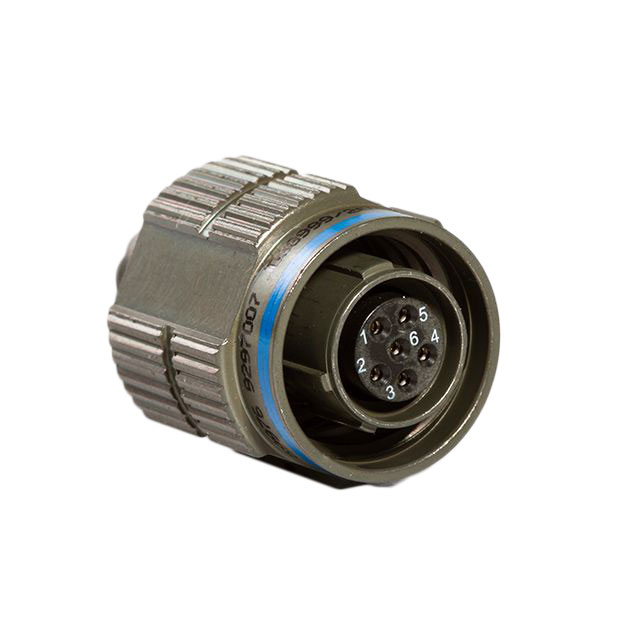

CONN RCPT MALE 61POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AE320KJ61PN

Active

Conesys

CONN RCPT MALE 61POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AE320KJ61PN	AE320K Series

Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Size	-	22D
Contact Size	-	16 - 20
Contact Type	-	Crimp
Current Rating (Amps)	7.5 A	5 - 13 A
Mounting Feature	Flange	Flange
Note	-	Contacts Not Included
Number of Positions	61	10 - 100
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	N, A
Primary Material	Metal	Metal
Qualification	-	MIL-DTL-38999 Series III
Shell Finish	Passivated	Passivated
Shell Material	Stainless Steel	Stainless Steel
Shell Size - Insert	J61	D-5, C-98, H-35, H-53, D-35, E-26, D-19, F-35, J61, F-11, J-61, F-32
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Type	-	For Female Sockets, For Male Pins

AE320K Series

CONN RCPT MALE 5POS CRIMP

Part	Shielding	Mounting Feature	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Primary Material	Termination	Orientation	Shell Finish	Connector Type	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Type	Qualification	Note	Contact Size	Contact Type	Contact Size
Conesys AE320KD5AN	Shielded	Flange	D-5	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	N	Passivated	Male Pins, Receptacle
Conesys AE320KC98AN	Shielded	Flange	C-98	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	N	Passivated	Male Pins, Receptacle	10
Conesys AE320KH35SA	Shielded	Flange	H-35	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	A	Passivated	Receptacle, Female Sockets	100	5 A	Gold
Conesys AE320KH53AA	Shielded	Flange	H-53	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	A	Passivated	Male Pins, Receptacle	53
Conesys AE320KH35SA-LC	Shielded	Flange	H-35	-65 ░C	200 °C	Stainless Steel			A	Passivated	Receptacle Housing	100			For Female Sockets	MIL-DTL-38999 Series III	Contacts Not Included	22D	Crimp
Conesys AE320KD35PN	Shielded	Flange	D-35	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	N	Passivated	Male Pins, Receptacle	37	5 A	Gold
Conesys AE320KE26SA	Shielded	Flange	E-26	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	A	Passivated	Receptacle, Female Sockets	26	7.5 A	Gold
Conesys AE320KD19SN	Shielded	Flange	D-19	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	N	Passivated	Receptacle, Female Sockets	19	7.5 A	Gold
Conesys AE320KF35AA	Shielded	Flange	F-35	-65 ░C	200 °C	Stainless Steel	Metal	Crimp	A	Passivated	Male Pins, Receptacle	66
Conesys AE320KE26PN-LC	Shielded	Flange	E-26	-65 ░C	200 °C	Stainless Steel			N	Passivated	Receptacle Housing	26			For Male Pins	MIL-DTL-38999 Series III	Contacts Not Included		Crimp	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 161.86
		10	$ 140.28
		25	$ 123.78
		50	$ 110.75
		100	$ 97.12

Description

General part information

AE320K Series

61 Position Circular Connector Receptacle, Male Pins Crimp
