T4113011021-000
ActiveTE Connectivity AMP Connectors

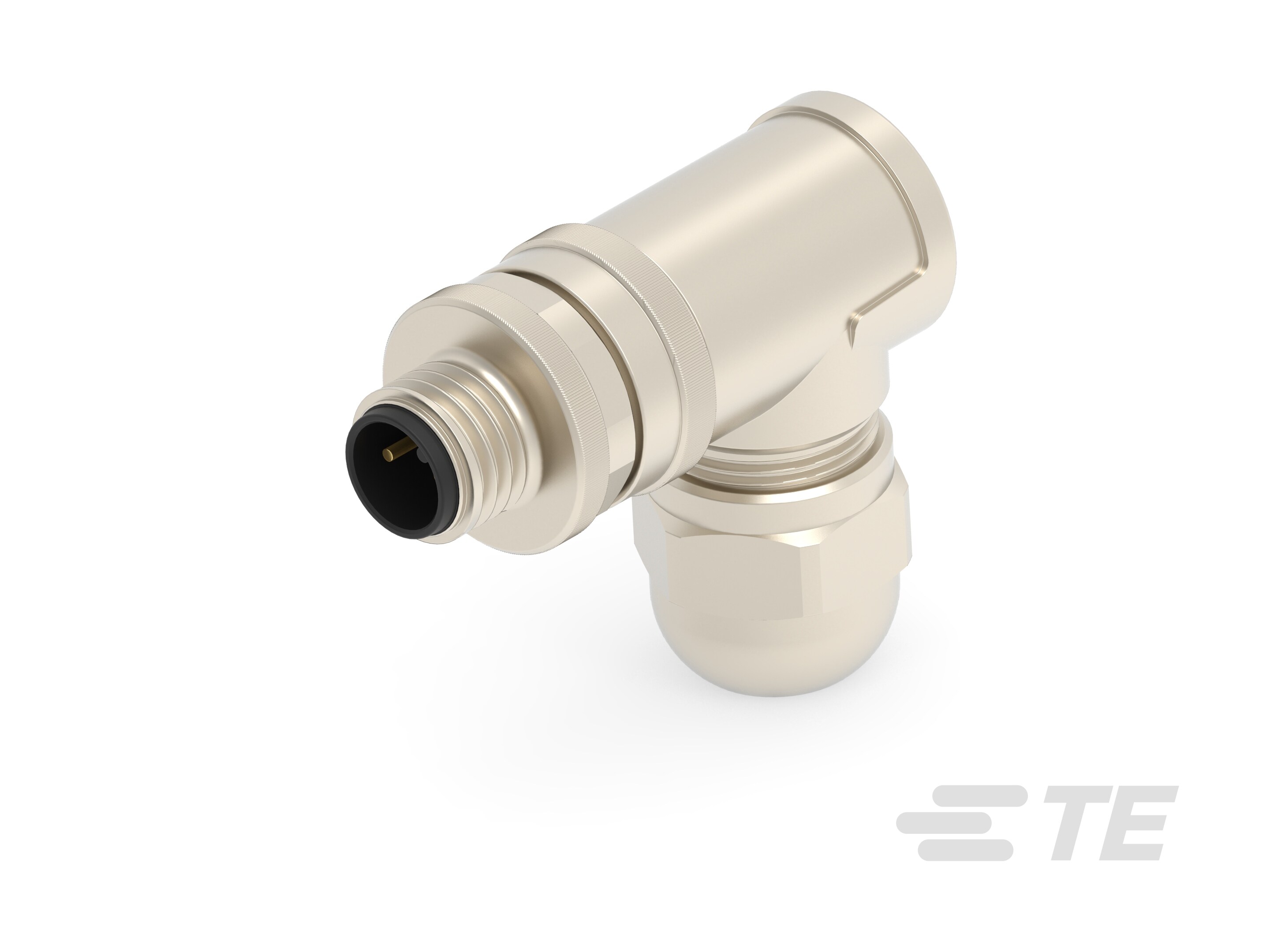

M12 M, 2P GOLD A_CODE RA SHIELDED PG7
T4113011021-000
ActiveTE Connectivity AMP Connectors
M12 M, 2P GOLD A_CODE RA SHIELDED PG7
Description
General part information
T4113011021-000
2 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Nickel, M12 Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | T4113011021-000 |
|---|---|
| Cable Opening (Max) | 0.236 in |
| Cable Opening (Min) | 0.157 in |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-2 |
| Shielding | Shielded |
| Termination | Screw |
| Voltage Rating | 250 V |
