Description
General part information

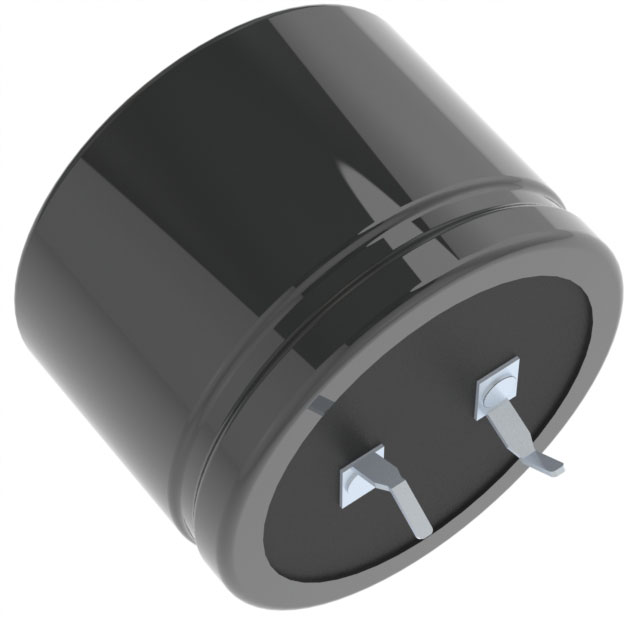

LKSN2222MESB
2200 µF 56 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LKSN2222MESB |
|---|---|
| Applications | Audio |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 0.866 in |
| Lead Spacing | 0.394 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.85 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 56 V |
