2379348-1
ActiveTE Connectivity AMP Connectors

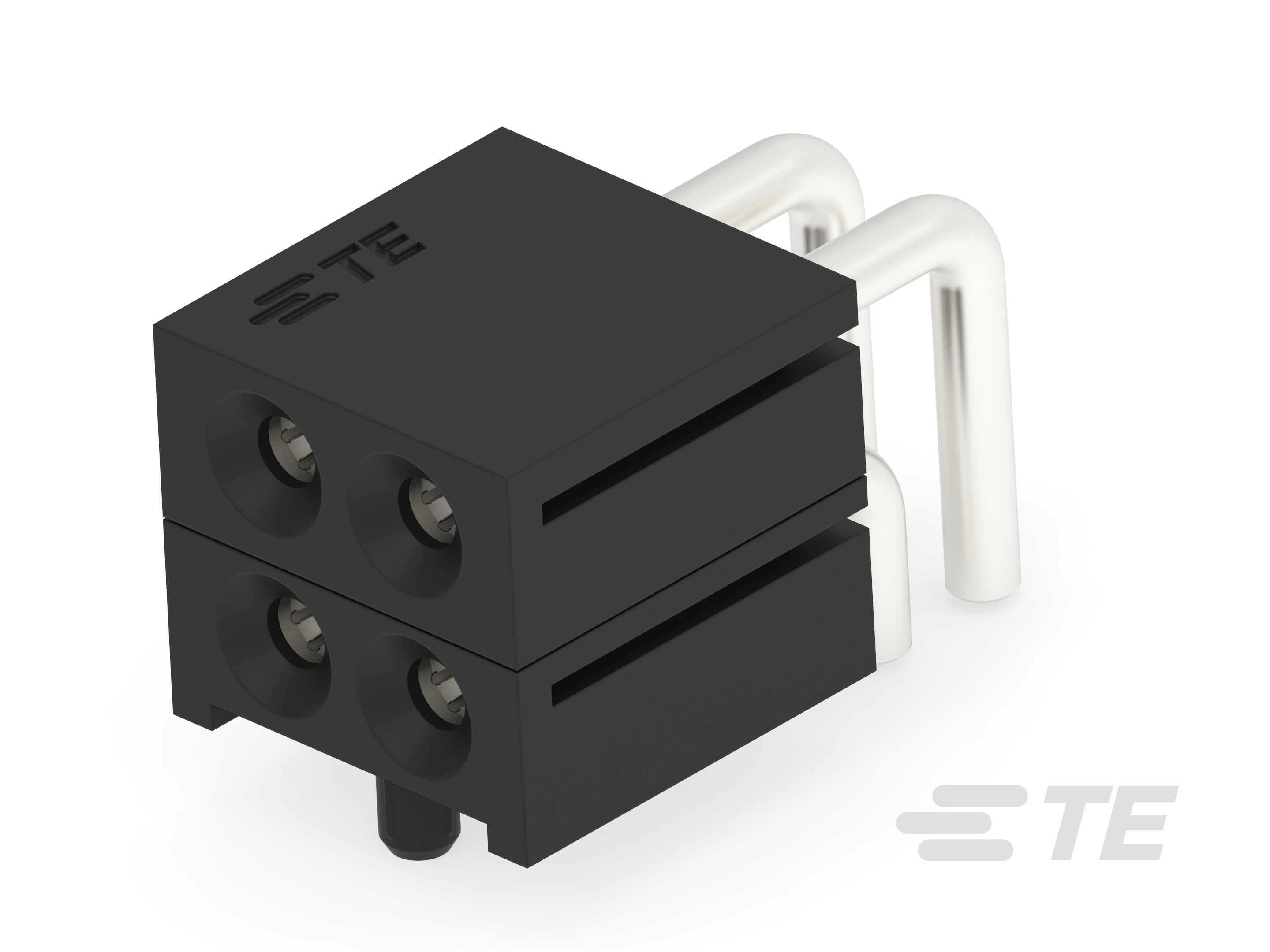

ICCON SLIM 4 POLE SOCKET
2379348-1
ActiveTE Connectivity AMP Connectors
ICCON SLIM 4 POLE SOCKET
Description
General part information
2379348-1
1 Position Backplane Power Connector, PCB Mount Receptacle, Board-to-Board, Right Angle, 6.6 mm [.259 in] Centerline, Printed Circuit Board
Technical Specifications
Parameters and characteristics for this part
| Specification | 2379348-1 |
|---|---|
| Color | Black |
| Connector Style | Power |
| Connector Type | Receptacle, Female Sockets |
| Features | Board Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.26 in |
| Power Contacts (Typical) | 2 |
| Termination | Solder |
