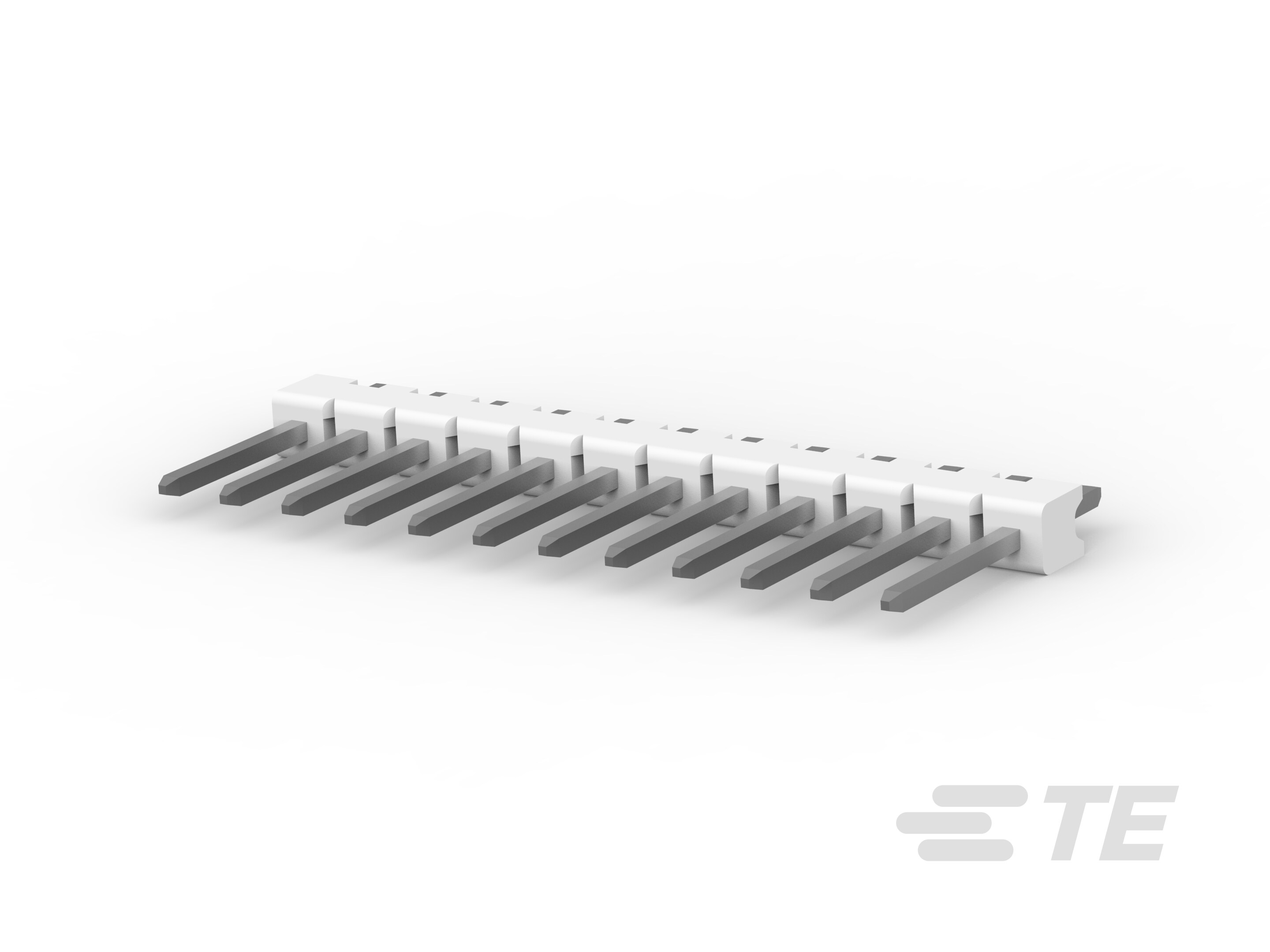

12P MTA100 HDR ASSY (NARROW)-4-644456-2

4-644456-2

Active
TE Connectivity AMP Connectors

CONN UNSHROUDED HEADER HDR 12 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BAG/BOX

Find alt
12P MTA100 HDR ASSY (NARROW)-4-644456-2

4-644456-2

Active
TE Connectivity AMP Connectors

CONN UNSHROUDED HEADER HDR 12 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BAG/BOX

Find alt

Description

General part information

644456 Series

PCB Mount Header, Vertical, Wire-to-Board, 12 Position, 2.54 mm [.1 in] Centerline, Breakaway, Tin (Sn), Through Hole - Solder, Signal, MTA 100

Technical Specifications

Parameters and characteristics for this part

Specification4-644456-2
ApplicationsGeneral Purpose
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating150 µin
Contact Finish Thickness - Post150 µin
Contact Length - Mating0.295 in
Contact Length - Post0.11 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Insulation ColorNatural
Insulation Height0.1 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions12
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Overall Contact Length0.505 in
Pitch - Mating0.1 in
ShroudingUnshrouded
StyleCable/Wire, Board
TerminationSolder
Voltage Rating250 V
