Description
General part information

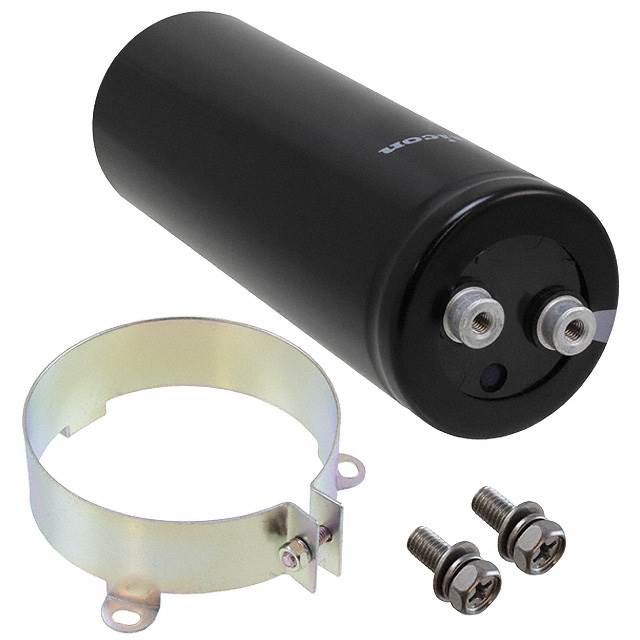

LNY2W272MSEF
2700 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNY2W272MSEF |
|---|---|
| Applications | General Purpose |
| Capacitance | 2700 µF |
| Height - Seated (Max) | 5.709 in |
| Lead Spacing | 0.866 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 14.42 A, 10.3 A |
| Size / Dimension Diameter | 2.008 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
