BA170
ActivePasternack
ADAPTOR UHF F/UHF F
BA170
ActivePasternack
ADAPTOR UHF F/UHF F
Description
General part information
BA170

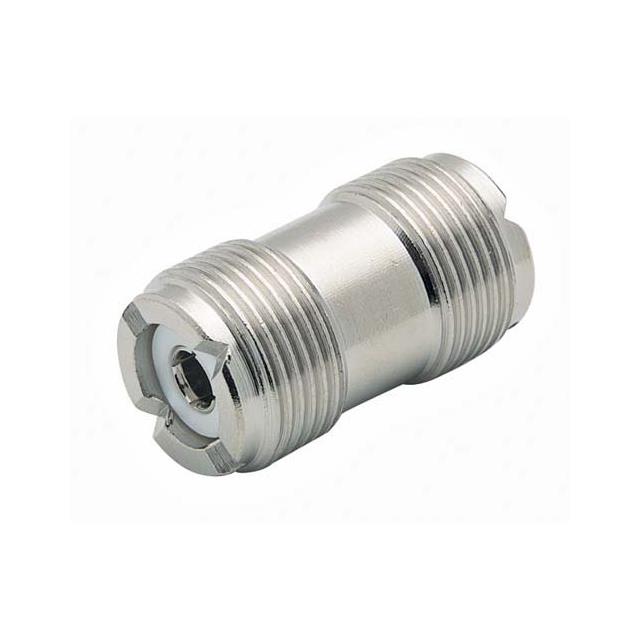

Adapter Coaxial Connector UHF Jack, Female Socket To UHF Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA170 |
|---|---|
| Adapter Series | UHF to UHF |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | UHF Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | UHF Jack |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
