Y14750R20000D5R
ActiveVPG Foil Resistors
V/N 303337U 0R2000 0.5% BT 15738
Y14750R20000D5R
ActiveVPG Foil Resistors
V/N 303337U 0R2000 0.5% BT 15738
Description
General part information
Y14750R20000D5R

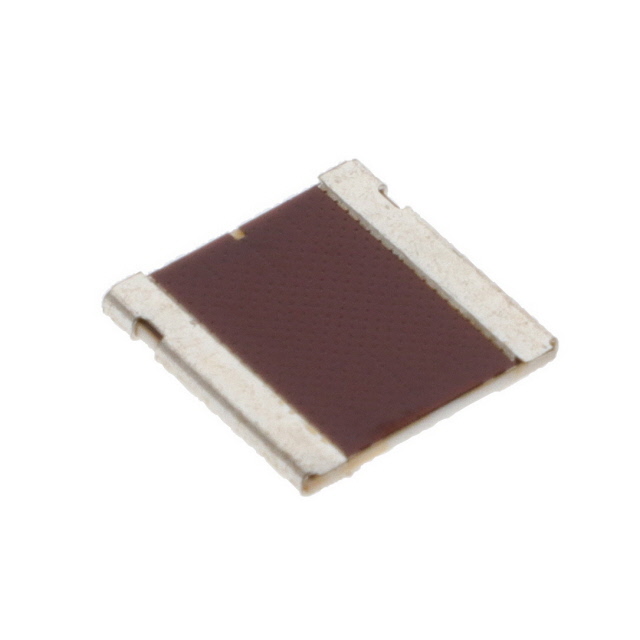

200 mOhms ±0.5% 3W Chip Resistor Nonstandard Current Sense Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y14750R20000D5R |
|---|---|
| Composition | Metal Foil |
| Features | Current Sense |
| Height - Seated (Max) | 0.05 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 3 W |
| Resistance | 200 mOhms |
| Size / Dimension Length | 0.365 in |
| Size / Dimension Width | 0.375 in |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.5 % |
