HHR-30SCPY20F6
ActivePanasonic Energy

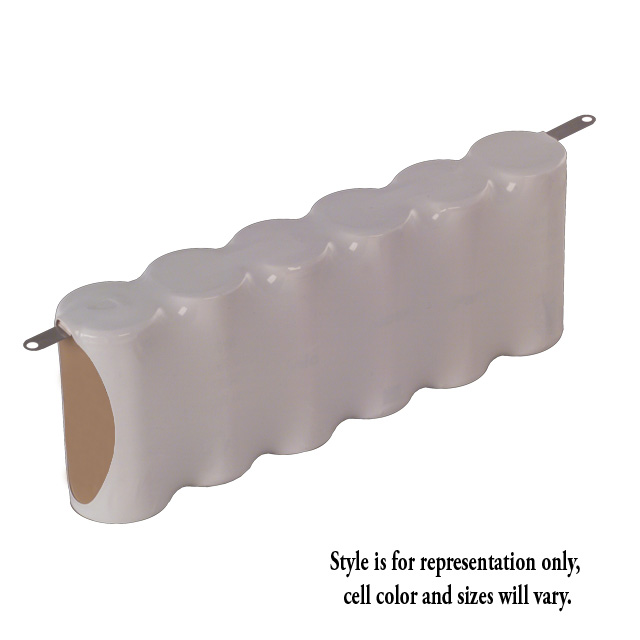

BATTERY PACK NIMH 7.2V SC
HHR-30SCPY20F6
ActivePanasonic Energy
BATTERY PACK NIMH 7.2V SC
Description
General part information
HHR-30SCPY20F6
SC 7.2 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-30SCPY20F6 |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 3 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 6 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.69 in |
| Size / Dimension Length | 5.43 in |
| Size / Dimension Width | 0.91 in |
| Structure | Side to Side |
| Structure Cells | 6 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 7.2 VDC |
| Weight | 342.92 g |
