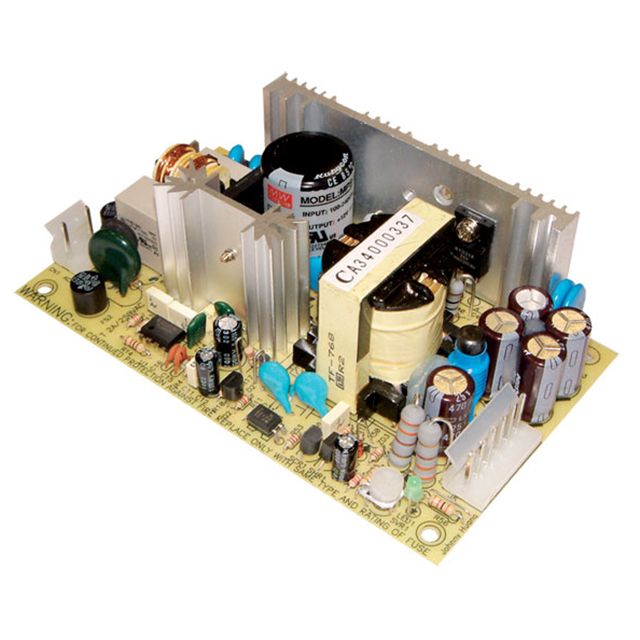

MPS-65-3.3
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 40W
MPS-65-3.3
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 40W
Description
General part information
MPS-65-3.3
Open Frame AC DC Converters 1 Output 3.3V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MPS-65-3.3 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CB, TUV, CE |
| Current - Output 1 | 12 A |
| Efficiency | 66 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 40 W |
| Size / Dimension Height | 1.65 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 2.99 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 3.3 V |
