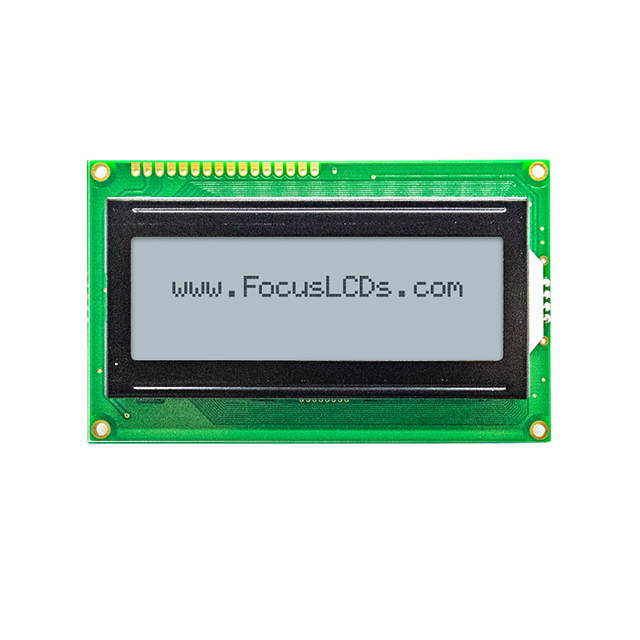

C204A-FTW-LW65
ActiveFocus LCDs
20X4 FSTN GRAY CHARACTER LCD
C204A-FTW-LW65
ActiveFocus LCDs
20X4 FSTN GRAY CHARACTER LCD
Description
General part information
C204A-FTW-LW65
Character Display Module Transflective 5 x 7 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 98.00mm x 60.00mm x 13.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C204A-FTW-LW65 |
|---|---|
| Background Color | Gray |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 9.22 mm |
| Character Height (Dots) | 7 Dots |
| Character Width | 4.84 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 20 |
| Display Mode | Transflective |
| Display Rows | 4 |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size Height | 0.65 mm |
| Dot Size Width | 0.6 mm |
| Interface | Parallel |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.5 mm |
| Outline Length | 98 mm |
| Outline Width | 60 mm |
| Text Color | Black |
| Viewing Area Length | 76 mm |
| Viewing Area Width | 25.2 mm |
| Voltage - Supply | 5 VDC |
