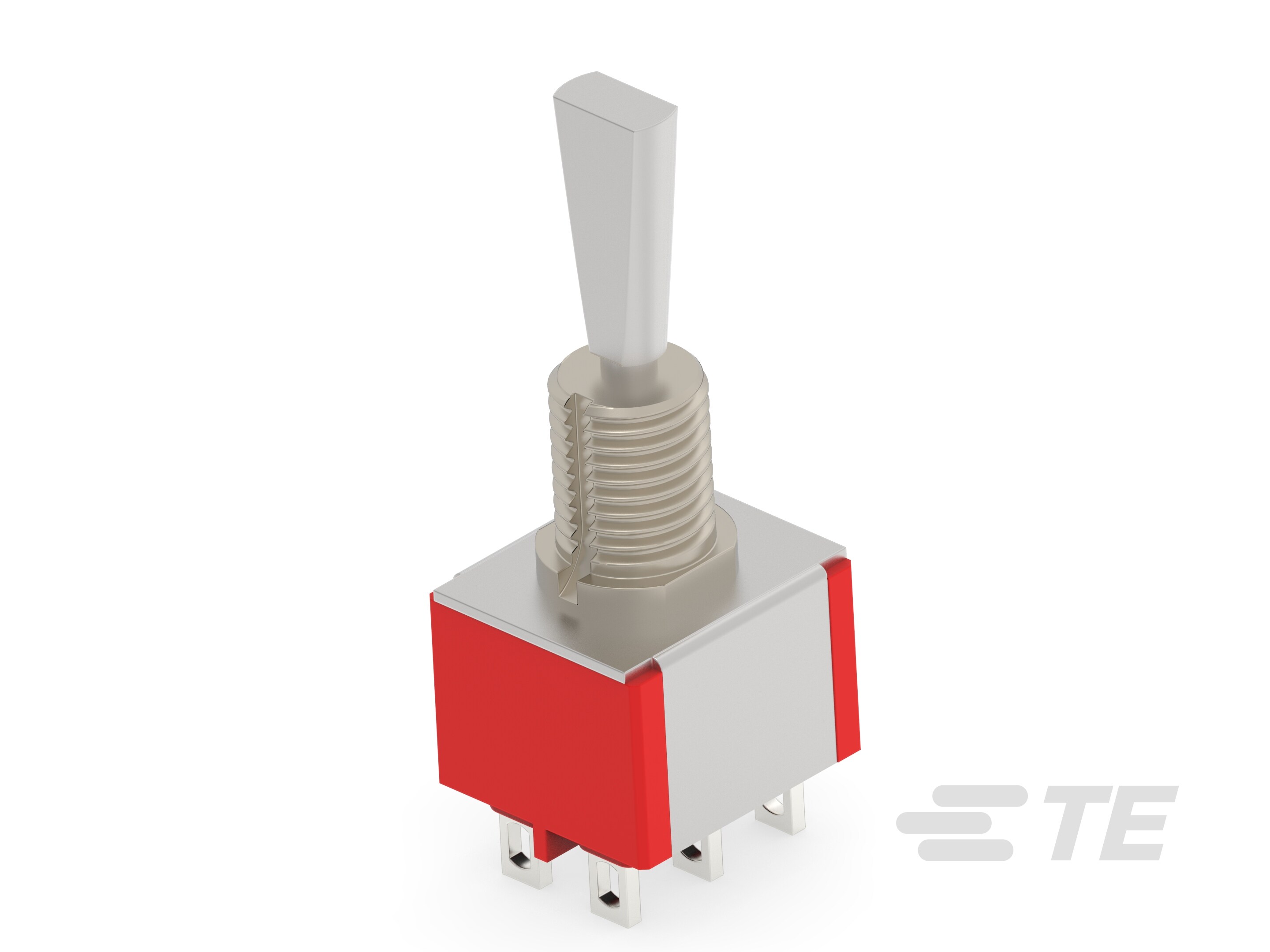

Specification	1825139-4

Actuator Length	12.29 mm
Actuator Material	Nickel Plated, Brass
Actuator Type	Flatted
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating	5 A
Electrical Life (Cycles)	6000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	0.25 "
Panel Cutout Shape	Circular
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

ALCOSWITCH Gemini A Series

...

Part	Electrical Life (Cycles)	Actuator Material	Actuator Type	Illumination	Mounting Type	Features	Switch Function	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Circuit	Actuator Length	Current Rating	Termination Style	Bushing Thread	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape
TE Connectivity AMP Connectors 3-1825137-3	6000 Cycles	Brass Nickel Plated	Standard Round	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	Mom-Off-Mom	20 V	85 °C	-30 °C	SPDT	12.19 mm	0.4 VA	PC Pin	Unthreaded	20 V
TE Connectivity AMP Connectors 3-1825137-4	6000 Cycles	Brass Nickel Plated	Standard Round	Non-Illuminated	Panel Mount Right Angle	Epoxy Sealed Terminals	Mom-Off-Mom	20 V	85 °C	-30 °C	SPDT	10.41 mm	0.4 VA	PC Pin	1/4-40	20 V	0.25 "	Circular
TE Connectivity AMP Connectors 2-1825137-8	6000 Cycles	Brass Nickel Plated	Flatted	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	Mom-Off-Mom	28 V	85 °C	-30 °C	SPDT	12.29 mm	5 A	PC Pin	1/4-40	120 V	0.25 "	Circular
TE Connectivity AMP Connectors 1-1825137-7	6000 Cycles	Brass Nickel Plated	Standard Round	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	On-Off-On	20 V	85 °C	-20 °C	SPDT	10.41 mm	0.4 VA	Wire Wrap	1/4-40	20 V	0.25 "	Circular
TE Connectivity AMP Connectors 2-1825137-3	6000 Cycles	Brass Nickel Plated	Standard Round	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	On-Off-On	28 V	85 °C	-30 °C	SPDT	17.45 mm	5 A	Solder Lug	15/32-32	120 V	12 mm	Circular
TE Connectivity AMP Connectors 2-1825137-5	6000 Cycles	Brass Nickel Plated	Standard Round	Non-Illuminated	Right Angle Through Hole	Epoxy Sealed Terminals	Mom-Off-Mom	28 V	85 °C	-30 °C	SPDT	6.86 mm	5 A	PC Pin	Unthreaded	120 V
