B78108S1223K009
ActiveEPCOS - TDK Electronics
FIXED IND 22UH 560MA 740 MOHM TH
B78108S1223K009
ActiveEPCOS - TDK Electronics
FIXED IND 22UH 560MA 740 MOHM TH
Description
General part information
B78108S1223K009

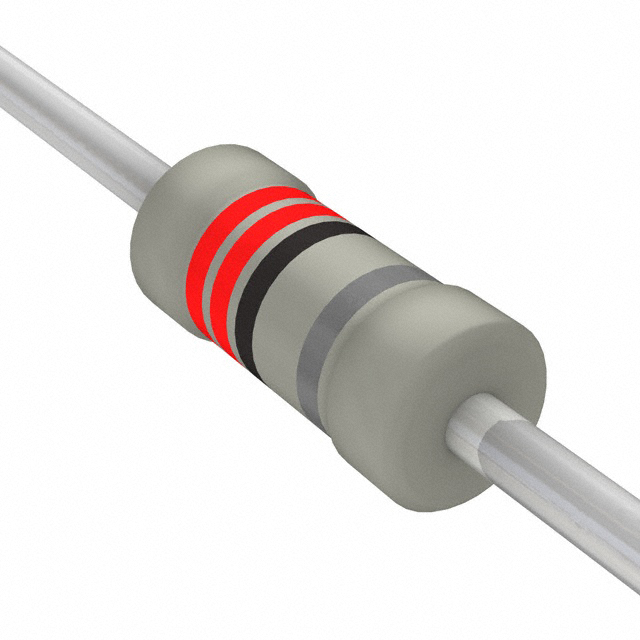

22 µH Unshielded Wirewound Inductor 560 mA 740mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108S1223K009 |
|---|---|
| Current Rating | 0.56 A |
| DC Resistance (DCR) (Max) | 740 mOhm |
| Frequency - Self Resonant | 13 MHz |
| Inductance | 22 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 10 % |
| Type | Wirewound |
