1-1355897-2

Active

TE Connectivity AMP Connectors

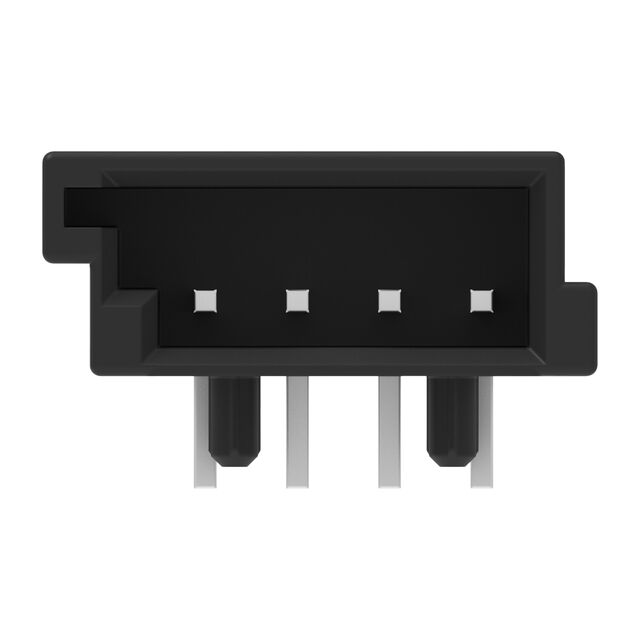

MQS PIN HEADER 4POS.

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

MQS PIN HEADER 4POS.

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1355897-2	1355897 Series

	-	-
Connector Type	Header	Header
Contact Length - Mating	6.8 mm	6.8 mm
Contact Length - Mating	0.268 in	0.268 in
Contact Length - Post [x]	0.055 in	0.055 in
Contact Length - Post [x]	1.4 mm	1.4 mm
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Height	0.244 in	0.244 in
Insulation Height	6.2 mm	6.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	1	1
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

MQS STIFTWANNE 4P

Part	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Shape	Number of Positions	Style	Insulation Color	Features	Fastening Type	Shrouding	Termination	Mounting Type	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows
TE Connectivity AMP Connectors 1-1355897-1
TE Connectivity AMP Connectors 1-1355897-2	0.244 in	6.2 mm	6.8 mm	0.268 in	Header	Square	4	Board to Cable/Wire	Black	Board Guide	Push-Pull	Shrouded - 4 Wall	Solder	Through Hole, Right Angle	All	Polyamide (PA66), Nylon 6/6, Glass Filled	0.1 in	2.54 mm	Male Pin	0.055 in	1.4 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
