424654-E
ObsoleteTE Connectivity AMP Connectors
STVH11 11 F B V 2 TL 4,3 * 197 E 105 TZV
424654-E
ObsoleteTE Connectivity AMP Connectors
STVH11 11 F B V 2 TL 4,3 * 197 E 105 TZV
Description
General part information
424654-E

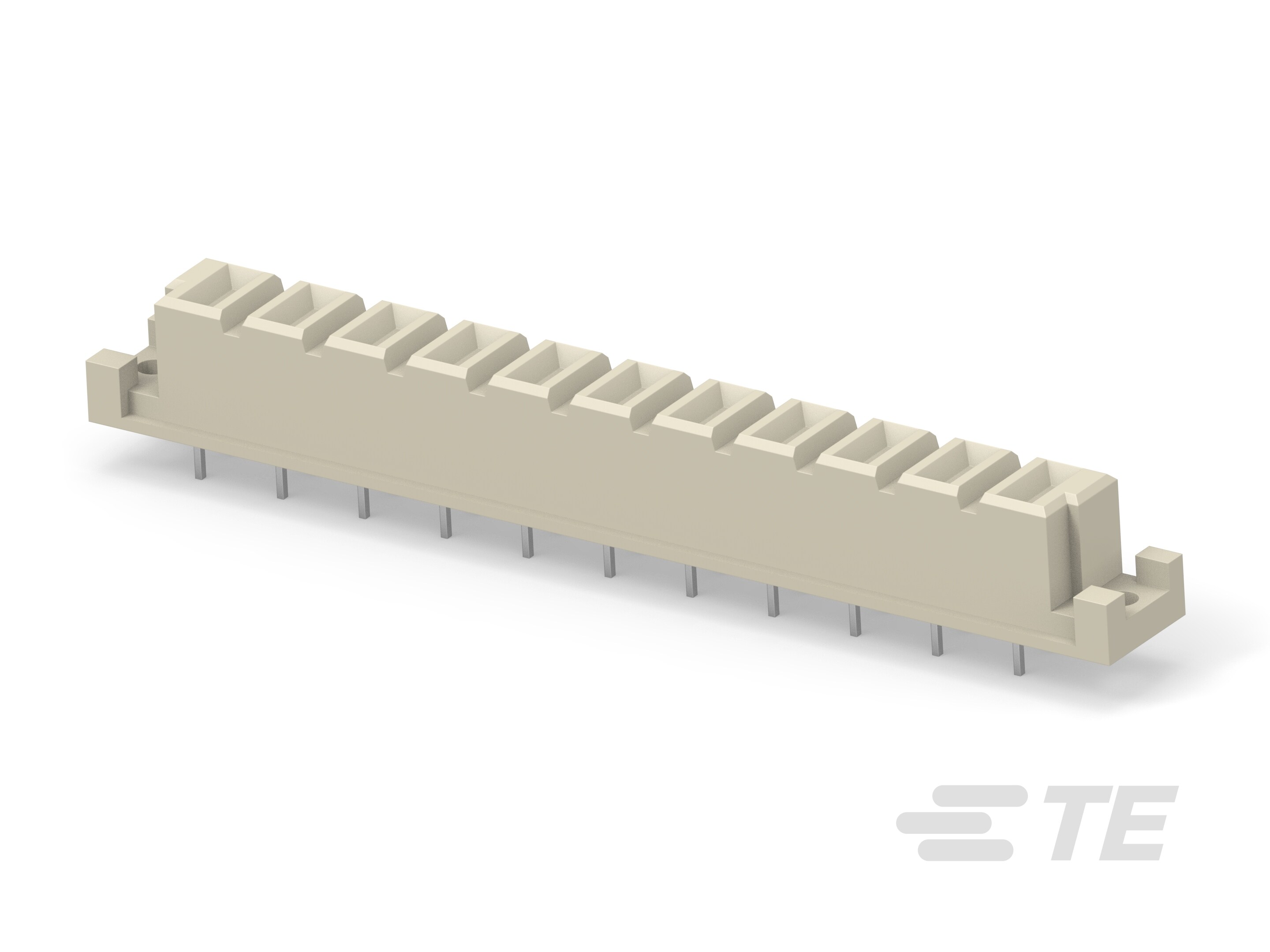

Receptacle, Board-to-Board, 11 Position, 7.62 mm [.3 in] Centerline, Printed Circuit Board, 1 Row, Vertical, 11 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 424654-E |
|---|---|
| Connector Type | Receptacle, Female Blade Sockets |
| Features | Mounting Clips |
| Level, Class | 1 |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch | 0.3 in |
| Style | H |
| Termination | Solder |
