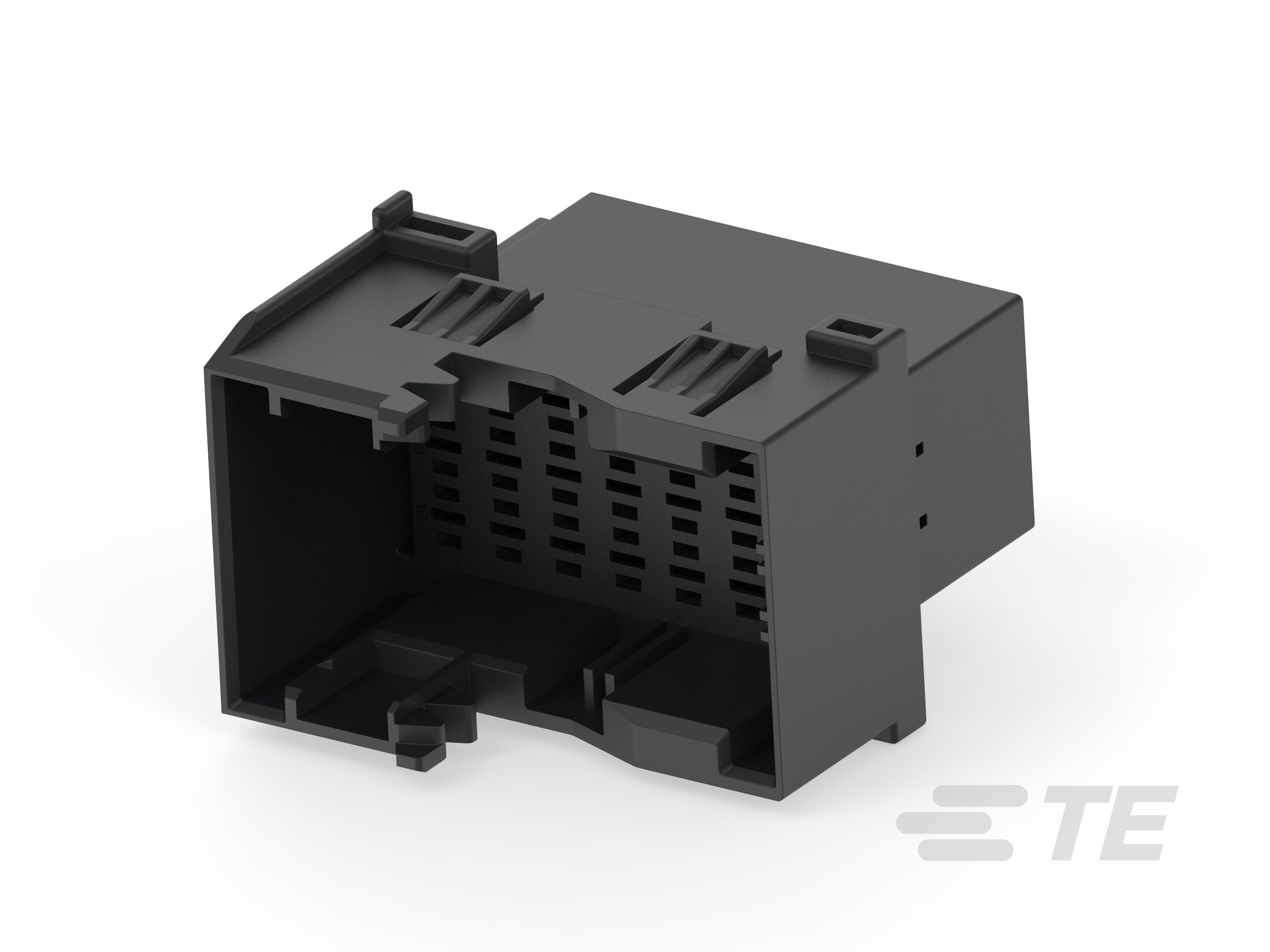

Specification	2379922-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Panel Mount
Number of Positions	21
Number of Rows	3
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Row Spacing	0.217 in

1.5/2.8 Connector System Series

Part	Type	Wire Gauge	Contact Termination	Pin or Socket	Contact Finish Thickness	Contact Finish	Contact Type	Number of Rows	Row Spacing	Pitch	Number of Positions	Fastening Type	Insulation Material	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 1326032-8	Power	20 AWG	Crimp	Socket	31.5 µin	Tin
TE Connectivity AMP Connectors 2379921-4			Crimp				Female Socket	3	0.217 in	0.197 in	21	Lever Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	120 °C	-40 °C	Receptacle	Blue
TE Connectivity AMP Connectors 1326029-3	Power		Crimp	Blade	31.5 µin	Tin													16 AWG	14 AWG
TE Connectivity AMP Connectors 967543-1			Crimp	Socket		Tin													15 AWG	13 AWG
TE Connectivity AMP Connectors 2379921-1			Crimp				Female Socket	3	0.217 in	0.197 in	21	Lever Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	120 °C	-40 °C	Receptacle	Black
TE Connectivity AMP Connectors 967543-3			Crimp	Socket		Silver													15 AWG	13 AWG
TE Connectivity AMP Connectors 1326029-1	Power	22 AWG	Crimp	Blade	31.5 µin	Tin
TE Connectivity AMP Connectors 2379922-4			Crimp				Male Pin	3	0.217 in	0.197 in	21		Glass Filled Nylon Polyamide (PA)	Panel Mount	120 °C	-40 °C	Plug	Blue
TE Connectivity AMP Connectors 1703034-1			Crimp	Socket		Tin													20.5 AWG	17 AWG
TE Connectivity AMP Connectors 967542-1			Crimp	Socket		Tin													20.5 AWG	17 AWG
