PR7
ActiveBENCH POWER SUPPLY, LINEAR, FIXED, 1 OUTPUT, 13.8 V, 7 A
PR7
ActiveBENCH POWER SUPPLY, LINEAR, FIXED, 1 OUTPUT, 13.8 V, 7 A
Description
General part information
PR7

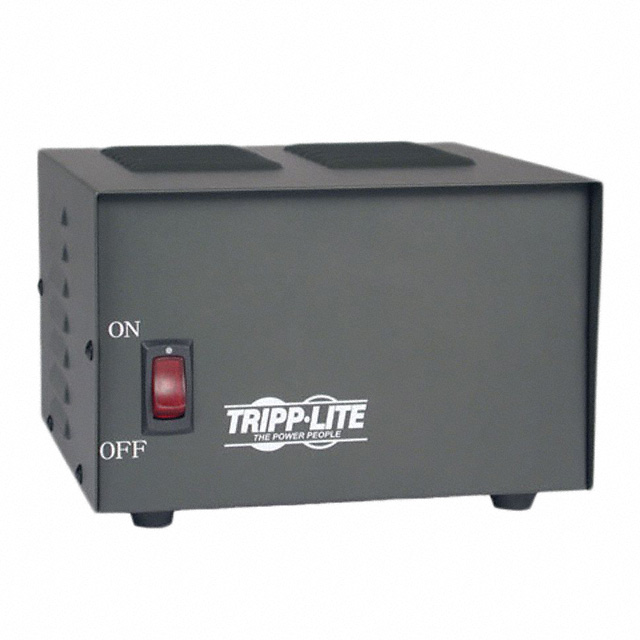

The PR7 is a Precision regulated DC Power Supply with an illuminated ON/OFF switch. Designed for years of reliable service and superior performance, they efficiently convert 120VAC into 13.8VDC (±0.5V). The Trim Line series of DC power supply offers a low-profile design with a footprint that matches the most popular radios on the market, such as Motorola, Radius, GE Monogram Series and EF Johnson models.
Technical Specifications
Parameters and characteristics for this part
| Specification | PR7 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 7 A |
| Mounting Type | Benchtop |
| Number of Outputs | 1 |
| Power (Watts) | 96 W |
| Size / Dimension Height | 3.75 in |
| Size / Dimension Length | 7.5 in |
| Size / Dimension Width | 6.5 in |
| Type | Linear |
| Voltage - Input | 120 VAC |
| Voltage - Output 1 | 13.8 V |
