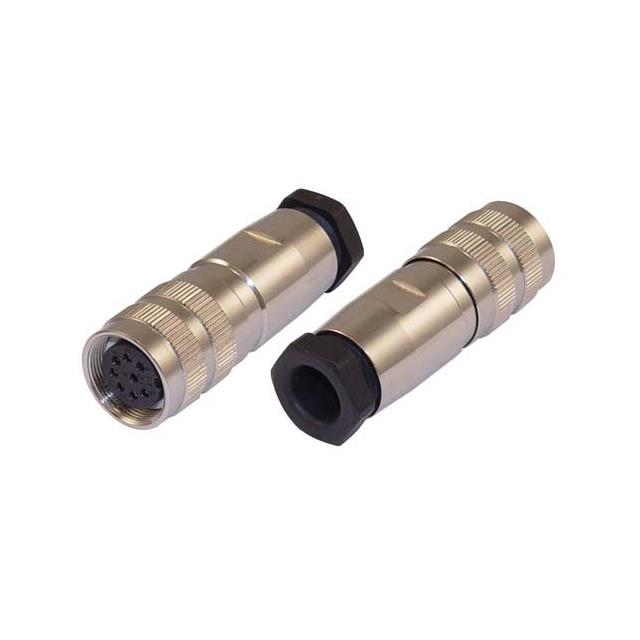

AISGF-2000
ActivePasternack
CONAISG 8 PIN FEMALE CLAMP
AISGF-2000
ActivePasternack
CONAISG 8 PIN FEMALE CLAMP
Description
General part information
AISGF-2000
8 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | AISGF-2000 |
|---|---|
| Cable Opening | 0.315 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Orientation | Keyed |
| Shell Size - Insert | M16-8 |
| Shielding | Shielded |
| Termination | Solder Cup |
