SAW8KG0B-X8Y1-HA

Active

Seoul Semiconductor

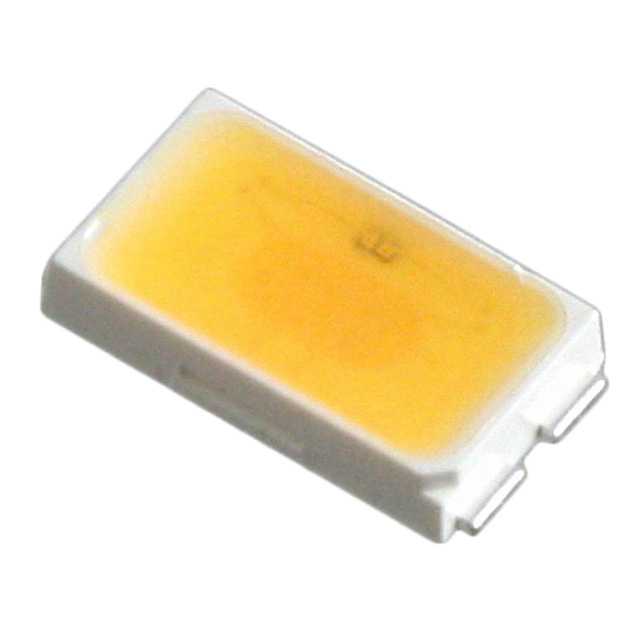

LED ACRICH A4 WM WHT 2700K 5630

Search across all available documentation for this part.

Active

Seoul Semiconductor

LED ACRICH A4 WM WHT 2700K 5630

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SAW8KG0B-X8Y1-HA	SAW8KG0 Series

CCT (K)	2700 K	2700 - 3000 K
CCT (K)	-	2900 K
CCT (K)	-	3200 K
Color	White, Warm	White, Warm
CRI (Color Rendering Index)	80	80
Current - Max [Max]	25 mA	25 mA
Current - Test	20 mA	20 mA
Flux @ 25°C, Current - Test	50 lm	50 lm
Height - Seated (Max) [Max] [z]	0.85 mm	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "	0.033 "
Lumens/Watt @ Current - Test	114 lm/W	114 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-SMD, Flat Lead Exposed Pad	4-SMD, Flat Lead Exposed Pad
Size / Dimension [x]	0.205 in	0.205 in
Size / Dimension [x]	5.2 mm	5.2 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Thermal Resistance of Package [diameter]	27 °C/W	27 °C/W
Viewing Angle	115 °	115 °

LED ACRICH A4 WM WHT 3000K 5630

Part	Mounting Type	Viewing Angle	Color	CCT (K) [Min]	CCT (K) [Max]	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	Current - Max [Max]	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Flux @ 25°C, Current - Test
Seoul Semiconductor SAW8KG0B-X8J0-GA	Surface Mount	115 °	Warm, White	2900 K	3200 K	3000 K	0.85 mm	0.033 "	20 mA	27 °C/W	80	25 mA	114 lm/W	3 mm	0.118 in	0.205 in	5.2 mm	4-SMD, Flat Lead Exposed Pad	50 lm
Seoul Semiconductor SAW8KG0B-X8Y1-HA	Surface Mount	115 °	Warm, White			2700 K	0.85 mm	0.033 "	20 mA	27 °C/W	80	25 mA	114 lm/W	3 mm	0.118 in	0.205 in	5.2 mm	4-SMD, Flat Lead Exposed Pad	50 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Acrich A4 White, Warm 2700K (2600K ~ 2900K) 22V 20mA 115° 4-SMD, Flat Lead Exposed Pad
