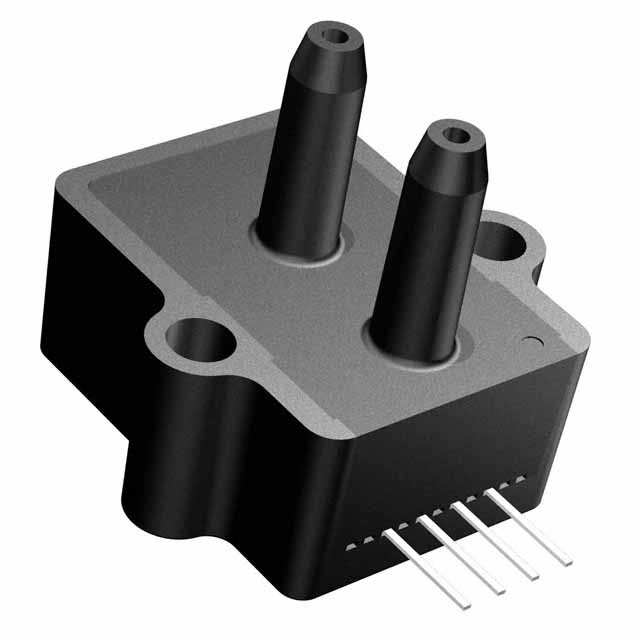

15 PSI-A-4V

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.19" 4.25V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.19" 4.25V

Technical Specifications

Parameters and characteristics for this part

Specification	15 PSI-A-4V

Accuracy	0.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	310.26 kPa
Maximum Pressure [Max]	45 PSI
Mounting Type	Through Hole
Operating Pressure [custom]	15 PSI
Operating Pressure [custom]	103.42 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output [Max]	4.25 V
Output [Min]	0.25 V
Output Type	Analog Voltage
Package / Case	4-SIP Module
Port Size	Male
Port Size	0.19 "
Port Size	4.8 mm
Port Style	Barbless
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

SENSOR 15PSIA 0.19" 4.25V

Part	Termination Style	Output Type	Features	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size	Accuracy	Output [Min]	Output [Max]	Mounting Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure [custom]	Operating Pressure [custom]	Package / Case	Applications
Amphenol All Sensors Corporation 15 PSI-A-4V	PC Pin	Analog Voltage	Amplified Output, Temperature Compensated	Barbless	4.5 V	5.5 V	Male	0.19 "	4.8 mm	0.5 %	0.25 V	4.25 V	Through Hole	310.26 kPa	45 PSI	-25 °C	85 °C	15 PSI	103.42 kPa	4-SIP Module	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 84.78

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.8mm) Tube 0.25 V ~ 4.25 V 4-SIP Module

Technical documentation and resources

No documents available
