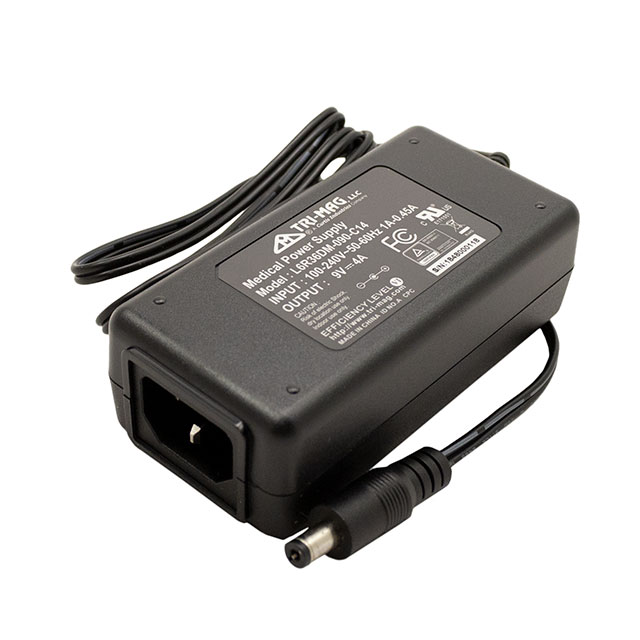

L6R36DM-090-C14
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 9V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L6R36DM-090-C14
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 9V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L6R36DM-090-C14 |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, cULus, EN, FCC, CE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.94 in |
| Size / Dimension [x] | 100.1 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 33 mm |
| Size / Dimension [z] | 1.3 " |
| Standard Number | 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.22 | |
| 5 | $ 22.87 | |||
| 10 | $ 22.51 | |||
| 25 | $ 21.44 | |||
| 60 | $ 20.72 | |||
| 120 | $ 19.29 | |||
| 300 | $ 19.01 | |||
Description
General part information
L6R36DM-090-C14
9V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
