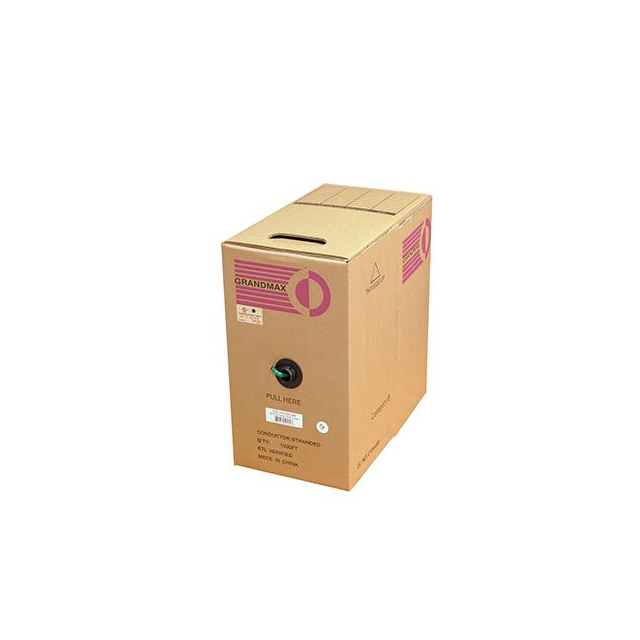

CBL-C63GN-AM

Active

Y.C. Cable (East)

CABLE CAT6 8COND 24AWG GRN 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBL-C63GN-AM

Active

Y.C. Cable (East)

CABLE CAT6 8COND 24AWG GRN 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBL-C63GN-AM

Cable Type	Multi-Pair, Cat6
Conductor Insulation	High Density Polyethylene (HDPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	0.0075 in
Conductor Strand [custom]	7
Features	Flame Retardant
Jacket (Insulation) Diameter	5.79 mm
Jacket (Insulation) Diameter	0.228 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Wire Gauge	24 AWG

CBL-C63 Series

Part	Cable Type	Wire Gauge	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Material	Number of Conductors	Features	Jacket (Insulation) Material	Conductor Insulation	Length	Length	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Material
Y.C. Cable (East) CBL-C63BK-AM	Multi-Pair Cat6	24 AWG	5.79 mm	0.228 in	Copper Bare	8	Flame Retardant	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Black	0.0075 in	7
Y.C. Cable (East) CBL-C63ES-OG-AM	Multi-Pair Cat6	24 AWG			Copper Bare	8	Drain Wire	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Orange	0.0075 in	7	100 %	UL Style CMR	6.6 mm	0.26 in	Foil	Aluminum
Y.C. Cable (East) CBL-C63ES-BK-AM	Multi-Pair Cat6	24 AWG			Copper Bare	8	Drain Wire	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Black	0.0075 in	7	100 %	UL Style CMR	6.6 mm	0.26 in	Foil	Aluminum
Y.C. Cable (East) CBL-C63ES-WT-AM	Multi-Pair Cat6	24 AWG			Copper Bare	8	Drain Wire	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m		0.0075 in	7	100 %	UL Style CMR	6.6 mm	0.26 in	Foil	Aluminum
Y.C. Cable (East) CBL-C63YL-AM	Multi-Pair Cat6	24 AWG	5.79 mm	0.228 in	Copper Bare	8	Flame Retardant	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Yellow	0.0075 in	7
Y.C. Cable (East) CBL-C63GN-AM	Multi-Pair Cat6	24 AWG	5.79 mm	0.228 in	Copper Bare	8	Flame Retardant	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Green	0.0075 in	7
Y.C. Cable (East) CBL-C63OG-AM	Multi-Pair Cat6	24 AWG	5.79 mm	0.228 in	Copper Bare	8	Flame Retardant	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Orange	0.0075 in	7
Y.C. Cable (East) CBL-C63ES-GY-AM	Multi-Pair Cat6	24 AWG			Copper Bare	8	Drain Wire	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Gray	0.0075 in	7	100 %	UL Style CMR	6.6 mm	0.26 in	Foil	Aluminum
Y.C. Cable (East) CBL-C63ES-YL-AM	Multi-Pair Cat6	24 AWG			Copper Bare	8	Drain Wire	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Yellow	0.0075 in	7	100 %	UL Style CMR	6.6 mm	0.26 in	Foil	Aluminum
Y.C. Cable (East) CBL-C63ES-PR-AM	Multi-Pair Cat6	24 AWG			Copper Bare	8	Drain Wire	Poly-Vinyl Chloride (PVC)	High Density Polyethylene (HDPE)	1000 ft	304.8 m	Violet	0.0075 in	7	100 %	UL Style CMR	6.6 mm	0.26 in	Foil	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CBL-C63 Series

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Green 24 AWG 1000.0' (304.8m)

Documents

Technical documentation and resources
