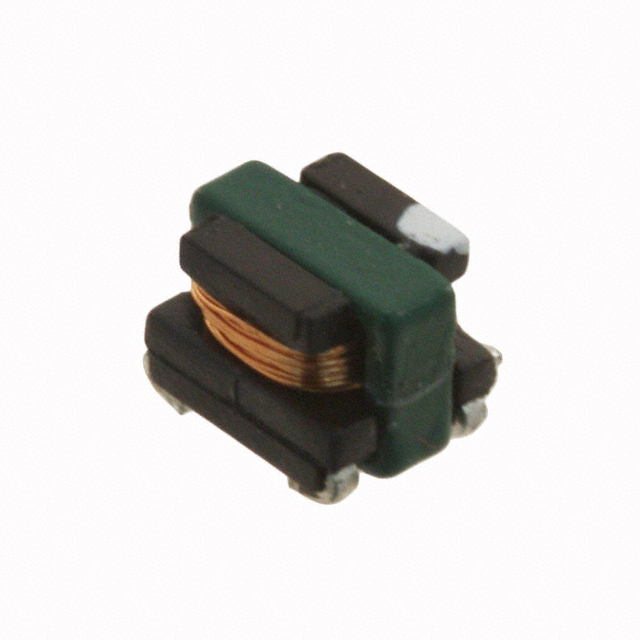

B82801A0824A100
ObsoleteEPCOS - TDK Electronics
CURR SENSE XFMR 1:100 SMD
B82801A0824A100
ObsoleteEPCOS - TDK Electronics
CURR SENSE XFMR 1:100 SMD
Description
General part information
B82801A0824A100
1:100 Current Sense Transformer 50kHz ~ 1MHz 2.5mOhm Primary, 8.7Ohm Secondary 820 µH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B82801A0824A100 |
|---|---|
| DC Resistance (DCR) (Primary) | 2.5 mOhm |
| DC Resistance (DCR) (Secondary) | 8.7 Ohm |
| DC Resistance Type | Primary, Secondary |
| Frequency Range (Max) | 1 MHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.138 in |
| Inductance | 0.82 mH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.185 in |
| Termination Style | J Lead |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 100 CT |
| Type | Invasive |
| Weight | 0.006 oz |
