FMCA1436-24
ActiveFairview Microwave
COAX CBL SMA TO MMBX 24"
FMCA1436-24
ActiveFairview Microwave
COAX CBL SMA TO MMBX 24"
Description
General part information
FMCA1436-24

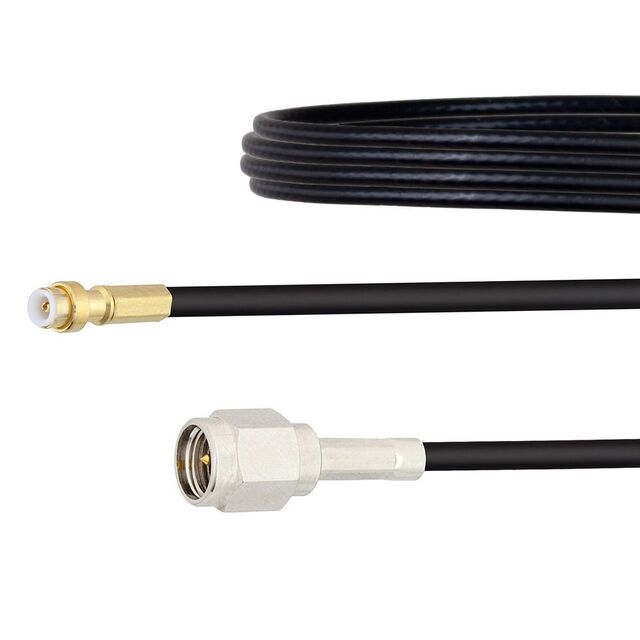

Cable Assembly Coaxial SMA to MMBX RG-174 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1436-24 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMBX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | MMBX, SMA |
