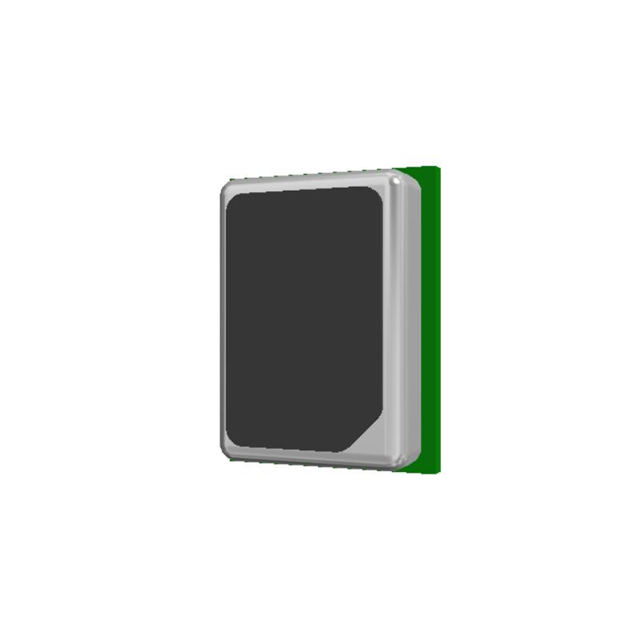

DMM-4326-T-WP-R
ActivePUI Audio, Inc.
MIC MEMS DIGITAL PDM OMNI -26DB
DMM-4326-T-WP-R
ActivePUI Audio, Inc.
MIC MEMS DIGITAL PDM OMNI -26DB
Description
General part information
DMM-4326-T-WP-R
20 Hz ~ 15 kHz Digital, PDM Microphone MEMS (Silicon) 1.6 V ~ 3.6 V Omnidirectional (-26dB ±1dB) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | DMM-4326-T-WP-R |
|---|---|
| Current - Supply | 800 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 15 kHz |
| Frequency Range (Min) | 20 Hz |
| Height (Max) | 0.045 in |
| Output Type | PDM, Digital |
| Port Location | Top |
| Ratings | IP57 - Dust Protected, Waterproof |
| S/N Ratio | 56 dB |
| Sensitivity (Nominal) | -26 dB |
| Sensitivity Tolerance | 1 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.118 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 1.8 VAC |
| Voltage Range (Max) | 3.6 V |
| Voltage Range (Min) | 1.6 V |
