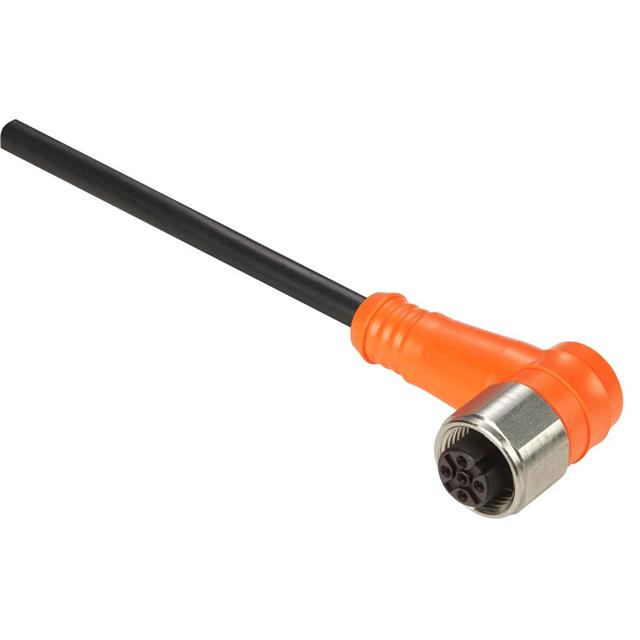

XZCPA1241L5
ActiveSCHNEIDER ELECTRIC
CBL 4POS PLUG RA TO WIRE 16.4'
XZCPA1241L5
ActiveSCHNEIDER ELECTRIC
CBL 4POS PLUG RA TO WIRE 16.4'
Description
General part information
XZCPA1241L5
Circular Cable Assembly Unshielded 16.40' (5.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCPA1241L5 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Right Angle, Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | High Temp Water Jets, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K |
| Length | 16.4 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
