1122 CL002

Active

ALPHA WIRE

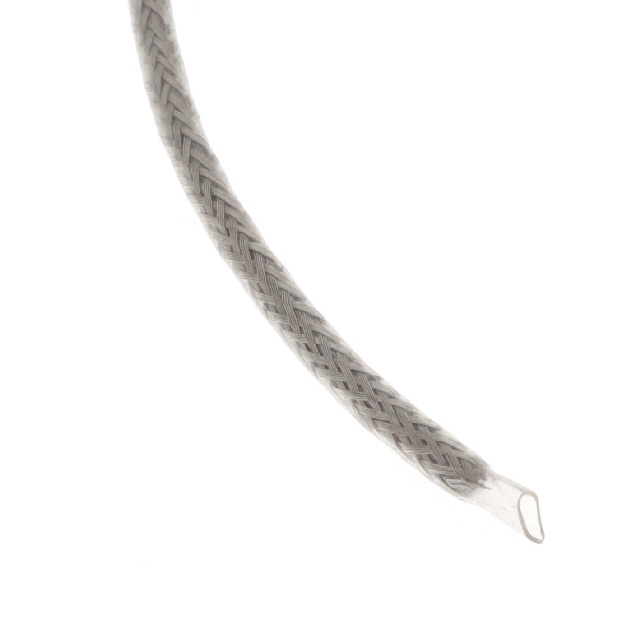

CABLE 4COND 28AWG CLEAR 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 28AWG CLEAR 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1122 CL002	1122 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	36 AWG	36 AWG
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	3.3 mm	3.3 mm
Jacket (Insulation) Diameter [diameter]	0.13 in	0.13 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Clear	Clear
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	200 V	200 V
Wire Gauge	28 AWG	28 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 4 CONDUCTOR, 28 AWG, 0.09 MM², 100 FT, 30.5 M

Part	Conductor Material	Jacket Color	Number of Conductors	Voltage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length
ALPHA WIRE 1122 CL005	Copper, Tinned	Clear	4	200 V	30.5 m	100 ft	3.3 mm	0.13 in	28 AWG	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	36 AWG	7	Multi-Conductor
ALPHA WIRE 1122 CL001	Copper, Tinned	Clear	4	200 V			3.3 mm	0.13 in	28 AWG	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	36 AWG	7	Multi-Conductor	1000 ft	304.8 m
ALPHA WIRE 1122 CL002	Copper, Tinned	Clear	4	200 V	152.4 m	500 '	3.3 mm	0.13 in	28 AWG	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	36 AWG	7	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2313.21

General part information

4 Conductor Multi-Conductor Cable Clear 28 AWG 500.0' (152.4m)
