H2019NL
ActivePulse Electronics

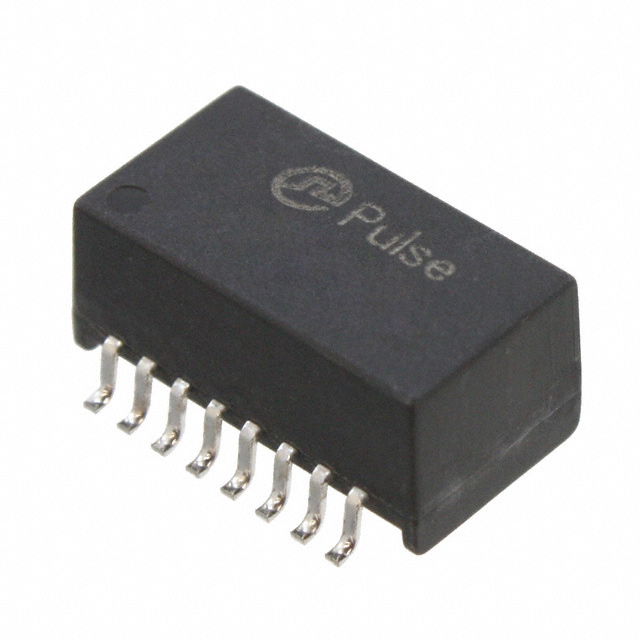

TELECOM TRANSFORMER 1:1 3.5OHM PRIM. DCR 16 TERMINAL GULL WING SMD
H2019NL
ActivePulse Electronics
TELECOM TRANSFORMER 1:1 3.5OHM PRIM. DCR 16 TERMINAL GULL WING SMD
Description
General part information
H2019NL
Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | H2019NL |
|---|---|
| Height - Seated (Max) | 0.24 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.28 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
| Weight | 0.04 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
