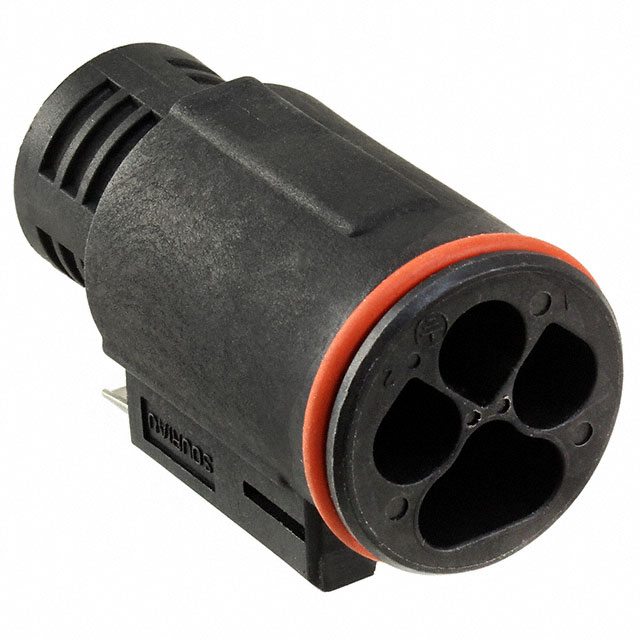

Specification	UTL6102G1W3S

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16, 20
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 5VA
Material Flammability Rating - Code	UL94
Material Flammability Rating - Level	5
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power, PE
Shell Material	Polyamide (PA), Glass Reinforced, Nylon
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	2 mm
Shielding	Unshielded
Type	For Female Sockets and Male Pins

UTL61 Series

Part	Connector Type	Primary Material	Material Flammability Rating - Level	Material Flammability Rating	Material Flammability Rating - Code	Insert Material	Contact Finish - Mating	Shielding	Number of Positions	Position Types	Shell Size - Insert Length	Shell Size - Insert Width	Contact Finish Thickness - Mating	Applications	Features	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Color	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Contact Material	Fastening Type	Termination	Accessory Type	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Material	Housing Color	Contact Size	Contact Shape	Type	Orientation	Contact Type	Note
Amphenol Aerospace Operations UTL6103G1P16AWG	Female Sockets Male Pins Plug	Plastic	5	UL94 5VA	UL94	Thermoplastic	Gold	Unshielded	4	PE	10 mm	3 mm	Flash	Industrial	Shrink Boot UV Resistant	-40 °C	105 °C	Free Hanging (In-Line)	Black	Glass Filled Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Copper Alloy	Latch Lock	Crimp
Amphenol Aerospace Operations UTL6102G1W3P14AWG	Female Sockets Male Pins Plug	Plastic	5	UL94 5VA	UL94	Nylon PA Polyamide	Gold	Unshielded	6	PE Power	10 mm	2 mm	Flash	Industrial	Shrink Boot UV Resistant	-40 °C	105 °C	Free Hanging (In-Line)	Black	Glass Filled Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Copper Alloy	Latch Lock	Crimp
Amphenol Aerospace Operations UTL610DCG															Contains Strap Dust Tight Waterproof				Black							Cap (Cover) Dust	10	10	UTL Series Plug	Ethylene Propylene Terpolymer Rubber (EPDM)
Amphenol Aerospace Operations UTL6122G1W5P	Plug Housing		5	UL94 5VA	UL94	Thermoplastic		Unshielded	8	PE Power	12 mm	2 mm				-40 °C	105 °C	Free Hanging (In-Line)		Glass Reinforced Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Latch Lock							Black	16 20	Circular	For Female Sockets and Male Pins	Keyed	Crimp	Contacts Not Included
Amphenol Aerospace Operations UTL6103G1P	Plug Housing		5	UL94 5VA	UL94	Thermoplastic		Unshielded	4	PE	10 mm	3 mm				-40 °C	105 °C	Free Hanging (In-Line)		Glass Reinforced Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Latch Lock							Black	16 S	Circular	For Female Sockets and Male Pins	Keyed	Crimp	Contacts Not Included
Amphenol Aerospace Operations UTL6122G1W5S	Plug Housing		5	UL94 5VA	UL94	Thermoplastic		Unshielded	8	PE Power	12 mm	2 mm				-40 °C	105 °C	Free Hanging (In-Line)		Glass Reinforced Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Latch Lock							Black	16 20	Circular	For Female Sockets and Male Pins	Keyed	Crimp	Contacts Not Included
Amphenol Aerospace Operations UTL6103G1S03	Plug Housing		5	UL94 5VA	UL94	Thermoplastic		Unshielded	4	PE	10 mm	3 mm				-40 °C	105 °C	Free Hanging (In-Line)		Glass Reinforced Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Latch Lock							Gray	16 S	Circular	For Female Sockets and Male Pins	Keyed	Crimp	Contacts Not Included
Amphenol Aerospace Operations UTL612DCG															Contains Strap with Ring Dust Tight Waterproof				Black							Cap (Cover) Dust	12	12	UTL Series Plug	Elastomer
Amphenol Aerospace Operations UTL6145S	Plug Housing			UL94 V-0		Nylon PA Polyamide		Unshielded	5	PE Power	14 mm	5 mm				-40 °C	105 °C	Free Hanging (In-Line)		Nylon Polyamide (PA)	IP68 IP69K	Dust Tight Water Resistant Waterproof		Latch Lock							Black	16 S	Circular	For Female Sockets	Keyed	Crimp	Contacts Not Included
Amphenol Aerospace Operations UTL6103G1P20AWG	Female Sockets Male Pins Plug	Plastic	5	UL94 5VA	UL94	Thermoplastic	Gold	Unshielded	4	PE	10 mm	3 mm	Flash	Industrial	Shrink Boot UV Resistant	-40 °C	105 °C	Free Hanging (In-Line)	Black	Glass Filled Nylon Polyamide (PA)	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Copper Alloy	Latch Lock	Crimp
