Description
General part information

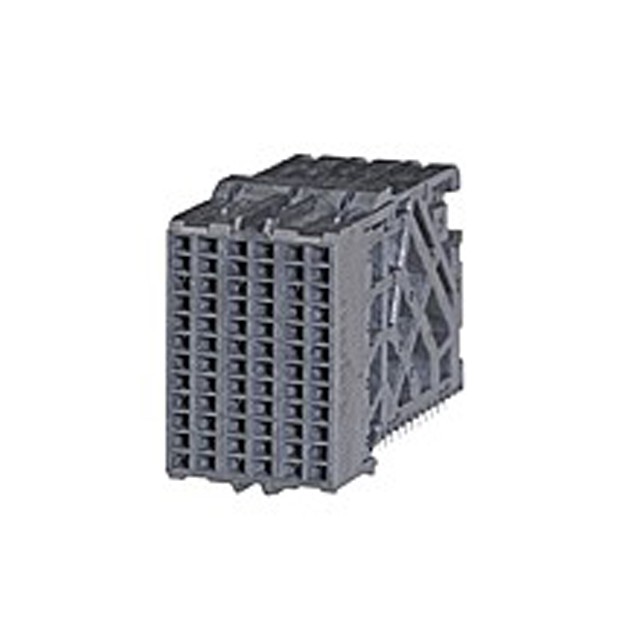

0768501006
CONN RCPT IMPACT 72POS EDGE MNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0768501006 |
|---|---|
| Color | Black |
| Connector Style | Impact |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Differential Pairs (Typical) | 24 |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 6 |
| Number of Positions | 72 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Pitch | 0.053 in |
| Termination | Press-Fit |
