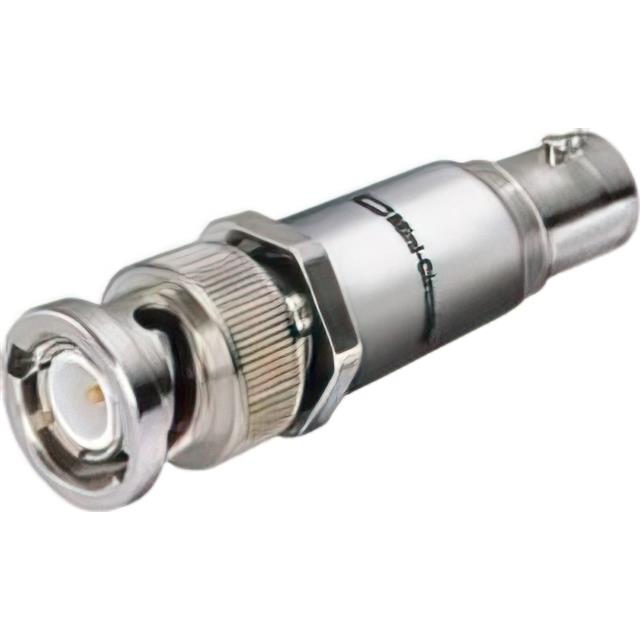

BLK-222-75+
ActiveMini-Circuits
BNC DC BLOCK 10 MHZ-2.2 GHZ, 75
BLK-222-75+
ActiveMini-Circuits
BNC DC BLOCK 10 MHZ-2.2 GHZ, 75
Description
General part information
BLK-222-75+
Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BLK-222-75+ |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Plug to Jack |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 2.2 GHz |
| Impedance | 50 Ohm, 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
