Description
General part information

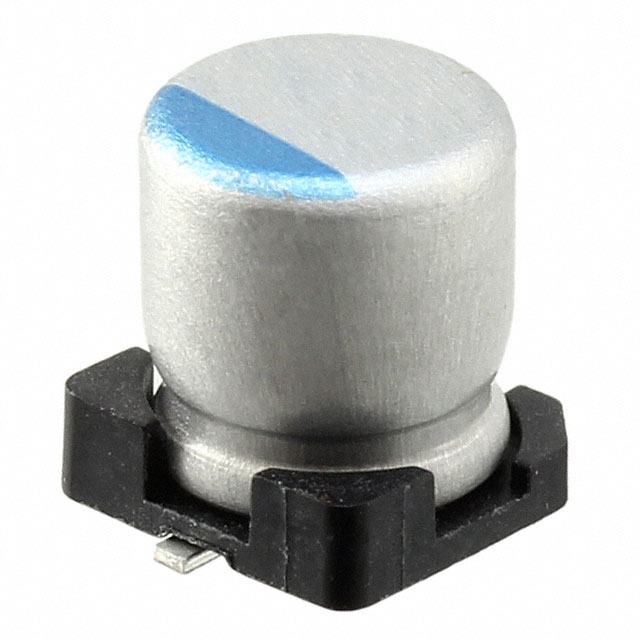

PCR1C680MCL1GS
68 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 65mOhm 4000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PCR1C680MCL1GS |
|---|---|
| Applications | Automotive |
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 65 mOhm |
| Height - Seated (Max) | 0.24 in |
| Lifetime | 4000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Ripple Current | 800 mA |
| Size / Dimension Diameter | 0.197 in |
| Surface Mount Land Length | 0.209 in |
| Surface Mount Land Width | 0.209 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 16 V |
