Description
General part information

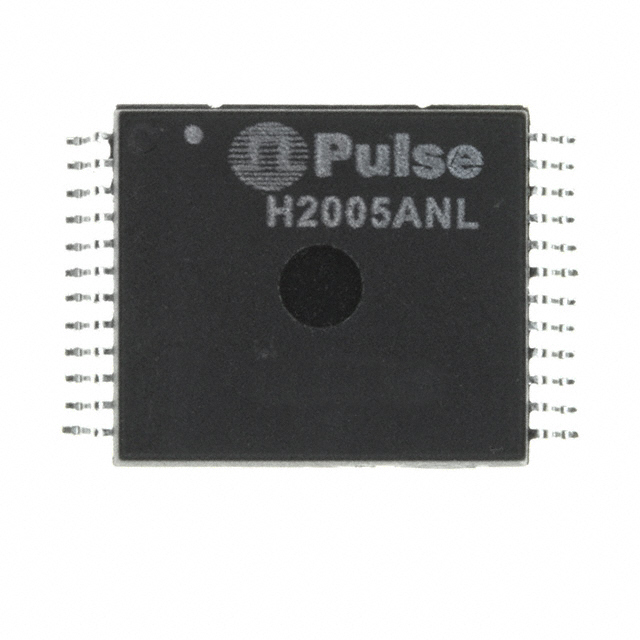

H2005ANLT
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | H2005ANLT |
|---|---|
| Height - Seated (Max) | 0.29 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.51 in |
| Size / Dimension Width | 0.6 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Transmitter, Receiver |
| Weight | 0.1 oz |
