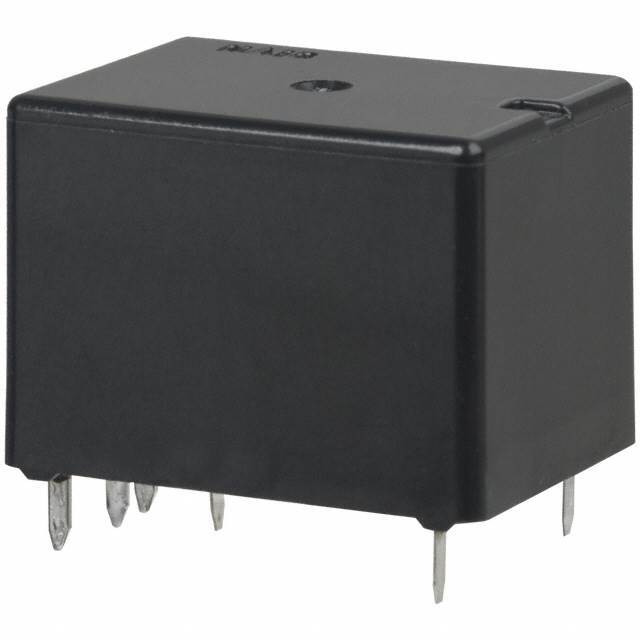

CF2-12V
ObsoletePanasonic Electronic Components
RELAY AUTOMOTIVE SPDT 10A 12V
CF2-12V
ObsoletePanasonic Electronic Components
RELAY AUTOMOTIVE SPDT 10A 12V
Description
General part information
CF2-12V
RELAY AUTOMOTIVE SPDT 10A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | CF2-12V |
|---|---|
| Coil Current | 53 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | 1, C, Form, SPDT |
| Contact Form Quantity | 2 pcs |
| Contact Material | Cadmium Free, Silver Alloy |
| Contact Rating (Current) | 10 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 10 ms |
| Switching Voltage (Nominal) | 14 VDC |
| Termination Style | PC Pin |
