LCCA30540-FT2
ActivePasternack
SMA M TO N MRA USING LC085TB, 2
LCCA30540-FT2
ActivePasternack
SMA M TO N MRA USING LC085TB, 2
Description
General part information
LCCA30540-FT2

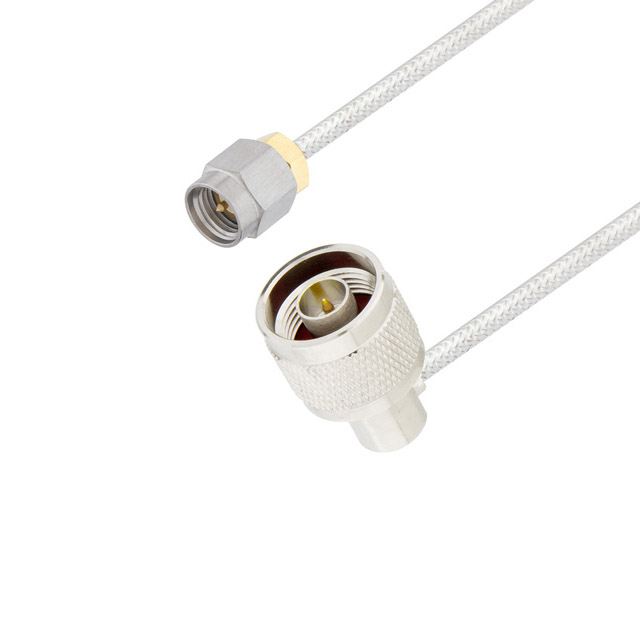

Cable Assembly Coaxial SMA to N-Type LC085TB 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30540-FT2 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 10 GHz |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
