IS42S16100F-7BLI-TR
ObsoleteISSI, Integrated Silicon Solution Inc

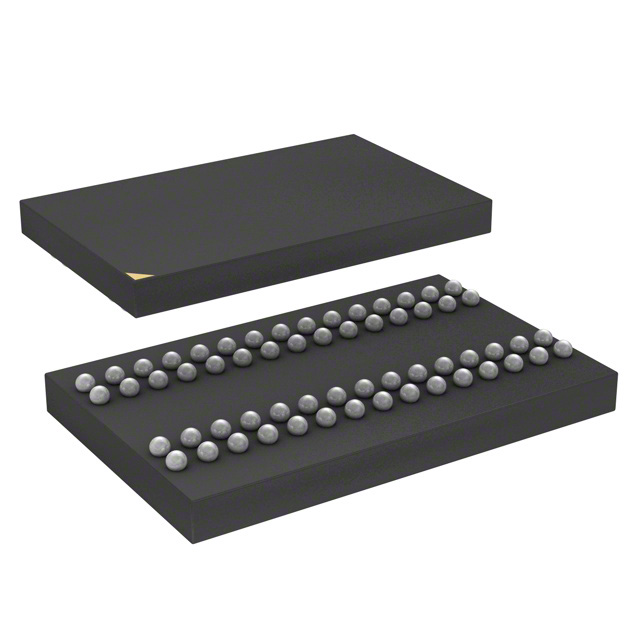

IC DRAM 16MBIT PAR 60TFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IS42S16100F-7BLI-TR
ObsoleteISSI, Integrated Silicon Solution Inc
IC DRAM 16MBIT PAR 60TFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IS42S16100F-7BLI-TR | IS42S16100 Series |
|---|---|---|
| Access Time | 5.5 ns | 5 - 5.5 ns |
| Clock Frequency | 143 MHz | 143 - 200 MHz |
| Memory Format | DRAM | DRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 1 M | 1 M |
| Memory Size | 16 Mb | 16 Mb |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 60-TFBGA | 50-TSOP, 60-TFBGA |
| Supplier Device Package | 60-TFBGA (6.4x10.1) | 50-TSOP II, 60-TFBGA (6.4x10.1) |
| Technology | SDRAM | SDRAM |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
IS42S16100 Series
IC DRAM 16MBIT PAR 50TSOP II
| Part | Technology | Operating Temperature [Max] | Operating Temperature [Min] | Memory Interface | Package / Case | Clock Frequency | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Size | Memory Type | Supplier Device Package | Memory Organization | Access Time | Memory Format | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISSI, Integrated Silicon Solution Inc IS42S16100C1-7TL | SDRAM | 70 °C | 0 °C | Parallel | 50-TSOP | 143 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 50-TSOP II | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100C1-7TI-TR | SDRAM | 85 °C | -40 °C | Parallel | 50-TSOP | 143 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 50-TSOP II | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100F-6TLI-TR | SDRAM | 85 °C | -40 °C | Parallel | 50-TSOP | 166 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 50-TSOP II | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100C1-6TL | SDRAM | 70 °C | 0 °C | Parallel | 50-TSOP | 166 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 50-TSOP II | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100C1-7T-TR | SDRAM | 70 °C | 0 °C | Parallel | 50-TSOP | 143 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 50-TSOP II | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100F-7TLI-TR | SDRAM | 85 °C | -40 °C | Parallel | 50-TSOP | 143 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 50-TSOP II | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100F-6BLI-TR | SDRAM | 85 °C | -40 °C | Parallel | 60-TFBGA | 166 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 60-TFBGA (6.4x10.1) | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100E-7BL | SDRAM | 70 °C | 0 °C | Parallel | 60-TFBGA | 143 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 60-TFBGA (6.4x10.1) | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100E-6BLI | SDRAM | 85 °C | -40 °C | Parallel | 60-TFBGA | 166 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 60-TFBGA (6.4x10.1) | 1 M | 5.5 ns | DRAM | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS42S16100C1-7BL | SDRAM | 70 °C | 0 °C | Parallel | 60-TFBGA | 143 MHz | 3.6 V | 3 V | 16 Mb | Volatile | 60-TFBGA (6.4x10.1) | 1 M | 5.5 ns | DRAM | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IS42S16100 Series
SDRAM Memory IC 16Mbit Parallel 143 MHz 5.5 ns 60-TFBGA (6.4x10.1)
