FMHR0219-8
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 8
FMHR0219-8
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 8
Description
General part information
FMHR0219-8

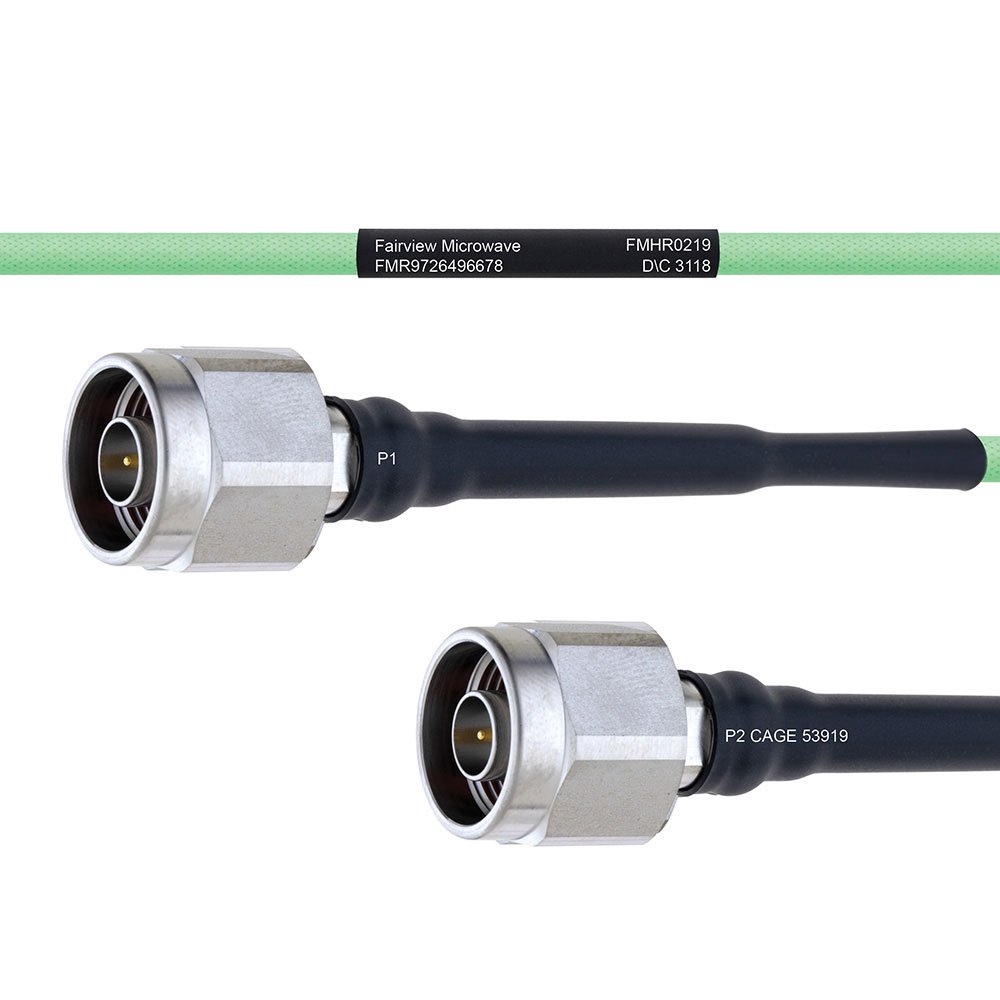

Cable Assembly Coaxial N-Type to N-Type LL160 8.000" (203.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0219-8 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 8 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
